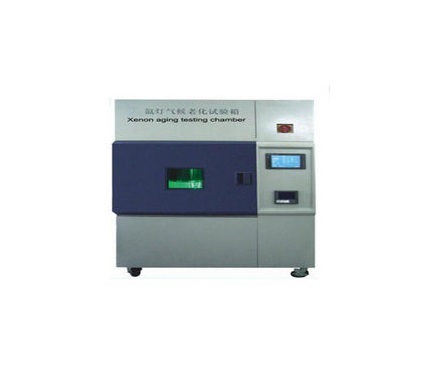

YuYang YY1010 Xenon Aging Chamber

Light source: 1.8 KW original Q - Lab import air cooled xenon lamp or 1.8 KW domestic xenon lamp (normal life 1500 hours)

Filters: filters or the sun glass filter (optional)

Effective exposure area: 1000 cm2 (a 150 x 70 mm model 9)

Light irradiance range:

30 w/m2 ~ 100 w/m2 (300 nm to 400 nm)

Or 0.35 W/m2 ~ 0.7 W/m2 (@ 340 nm)

Or 0.5 W/m2 ~ 2.1 W/m2 (@ 420 nm)

Blackboard temperature range: room temperature 30 ℃ ~ + 80 ℃

Shell material: stainless steel 304 / coating

Overall dimensions: 925 * 487 * 487 mm (length x width x height)

Net weight: 110 kg (including packaging wooden box 140 kg)

Power supply: 220 v, 50/60 hz;Maximum current 12 A

Datasheet
