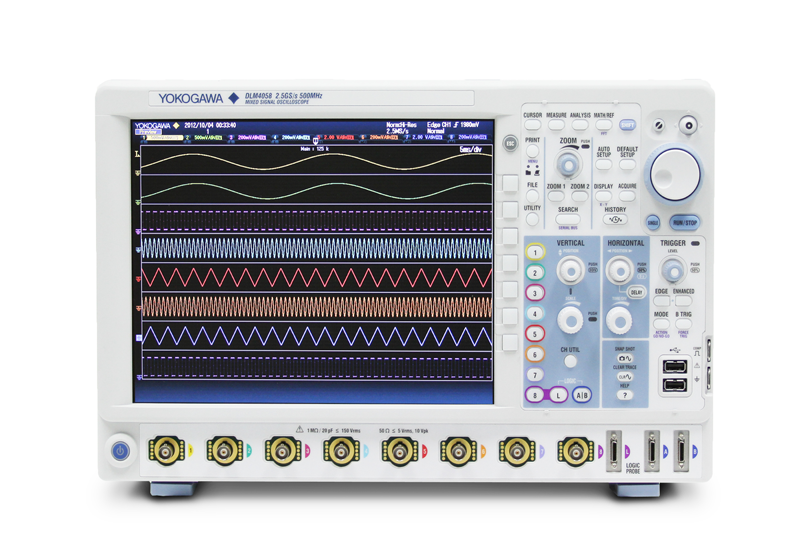

Maximum sample rate: 2.5GS/s
Frequency bandwidth: 500MHz
Maximum Record length: 12.5Mpts, 62.5Mpts, 125Mpts
Logic input: 8bit, 24bit optional
Channels: 8ch
Display: 12.1"-inch TFT color liquid crystal display
Total pixels: 1024 × 768 (XGA)
Input channels(standard): 8 analog channels or 7 analog channels + 8bit logic (/L16 option); 8 analog channels + 16bit logic or 7 analog channels + 24bit logic
Input coupling setting: AC, DC, DC50, GND
Input impedance: 1MΩ- ±1.0%, approximately 20 pF; 50MΩ- 2 mV/div to 500 mV/div (steps of 1-2-5)
Voltage axis sensitivity setting range: 1 MΩ: 2 mV/div to 10 V/div (steps of 1-2-5); 50 Ω: 2 mV/div to 500 mV/div (steps of 1-2-5)
Max. input voltage: 150 Vrms
DC accuracy: (1.5% of 8 div + offset voltage accuracy)
Offset voltage accuracy: 2 mV to 50mV/div | ±(1% of setting +0.2 mV); 100 mV to 500 mV/div | ±(1% of setting + 2 mV); 1 V to 10 V/div | ±(1% of setting + 20 mV)
A/D Resolution: 8 bit (25LSB/div)
Bandwidth limit: Max. 12 bit (in High Resolution mode); FULL, 200 MHz, 100MHz, 20 MHz, 10 MHz, 5 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125 kHz, 62.5 kHz, 32 kHz, 16 kHz, 8 kHz
(can be set for each channel)
Environment
Power supply: 100 to 240 VAC /50/60Hz
Power consumption: Max 170 VA
Operating Temperature: 5C° to 40C°
Dimensions: 426 (W) × 266 (H) × 178 (D) mm
(when printer cover is closed, excluding protrusions)
Weight: Approx. 6.6kg With no options
