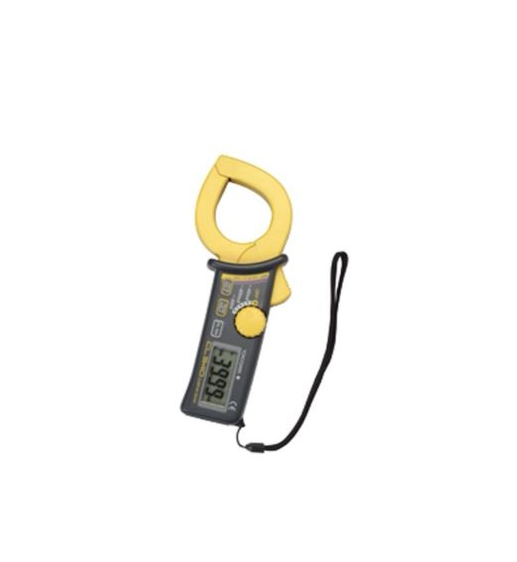

YOKOGAWA CL345 Clamp meter (AC 400A; True RMS)

AC current: 40mA/400mA, 400A(0～300A), 400A(300～400A); 1.0+5 (50/60Hz) at 40mA/400mA, 400A(0～300A)

Method of detection:True RMS

Display: LCD(Digital display:4200 counts)*

Response time:Approx. 2 seconds

Range switching:Manual-range

Data hold: On all range

Peak hold: On all range

Operating temperature and humidity :0-40C 85% RH or less (no condensation)

Effect of external magnetic field: 10mA or less in proximity to a 15mm-dia conductor carrying 100A

Effect of conductor position:40/400mA range:Within 5dgt at every part inside the jaw400A range, 0 to 250A:Within ± 0.5%rdg ± 5dgt at every part inside the jaw section

Effect of residual current: 12mA or less in proximity to a 10mm-dia conductor carrying 100A

Safety standard:Conforms EN61010-1, EN61010-2-032

Circuit voltage:300Vrms or less

Withstanding voltage:4240V AC for 5 sec

Power supply:R0-3(UM-4) 2 or LR03 2

Batttery life:Approx. 24 hours (continuous)

Consumed current:Approx. 21mA

Auto power-off: Approx. 10 minutes

Diameter of measurable conductor:40mm at maximum

Dimensions:Approx. 81(W)185(H)32(D)mm

Weight: Approx. 270g

Accessories:User's manual, batteries, carrying case(93030)
