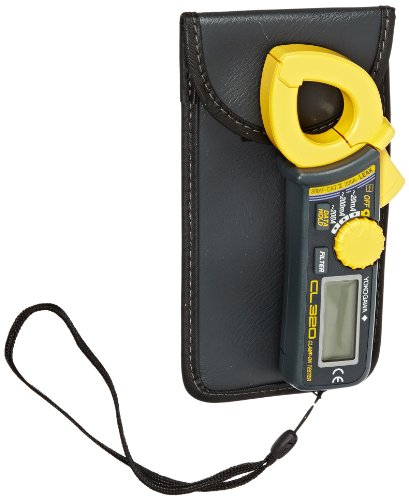

YOKOGAWA CL320 Clamp meter (AC 200A; Mean value)

AC current: 20mA/200mA, 200A(0～100A), 200A(100.1～200A); 2.0+4 (50/60Hz) WIDE(40～400Hz) at 20mA/200mA, 200A(0～100A)

Method of detection:Mean value

Display:LCD(Digital display:1999 counts)

Response time:Approx. 2 seconds

Range switching:Manual-range

Data hold: On all range

Operating temperat ure and humidity :0-40C 85% RH or less (no condensation)

Effect of external magnetic field: 10mA or less in proximity to a 14.4mm-dia conductor carrying 100A

Effect of conductor position:Within 5dgt for 0 to 50A, or 2% for 50 to 200A (10mm-dia conductor at inside the jaw)

Effect of residual current: 10mA or less in proximity to a 10mm-dia conductor carrying 50A

Safety standard:Conforms EN61010-1, EN61010-2-032

Circuit voltage:300Vrms or less

Withstanding voltage:4240V AC for 5 sec

Power supply:LR-44x2(3V) or SR-44x2

Batttery life:Approx. 15 hours (continuous)

Consumed current:Approx. 5mA

Auto power-off: Approx. 10 minutes

Diameter of measurable conductor:24mm at maximum

Dimensions:Approx. 60(W)149(H)26(D)mm

Weight: Approx. 120g

Accessories:User's manual, batteries, carrying case(93033)
