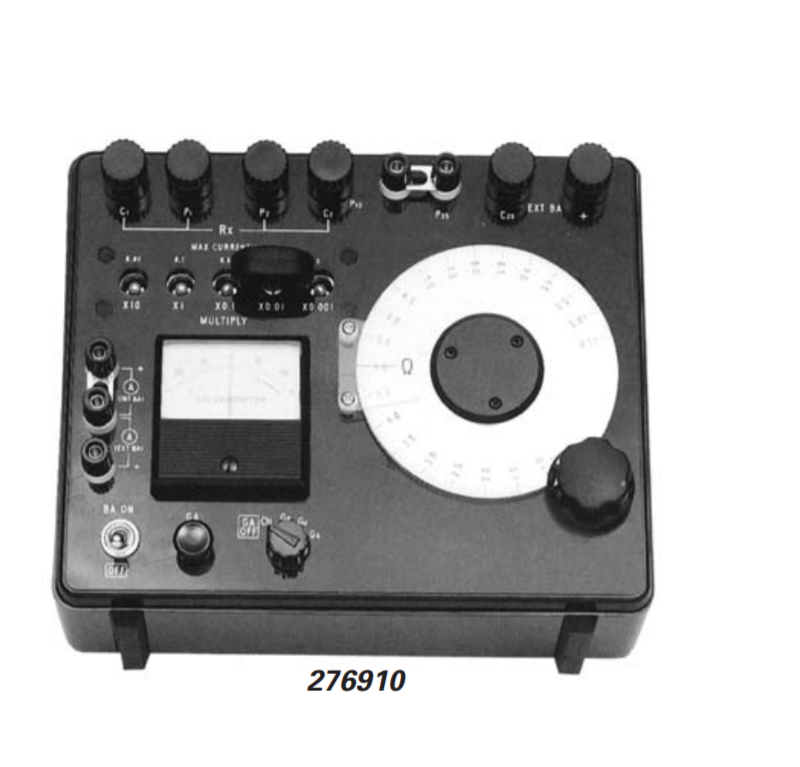

Measuring Range: 0.1mΩ to 110Ω
Measuring Arm: 1.00 to 11.00Ω at x1
Multiplier: 0.005mΩ at x 0.0001; 0.05mΩ at x 0.001; 0.5Ω at x 10; 0.5mΩ at x 0.01; 50mΩ at x 1; 5mΩ at x 0.1
x 0.0001, x 0.001, x 0.01, x 0.1, x 1, x 10 (plug-in system)
Accuracy: ±(0.05Ω x multiplier +0.01mΩ) at temperature of 5 to 35°C (41 to 95°F) and humidity range of less then 85%.
Galvanometer (Built-In): Galvanometer (built-in) electronic DC galvanometer, Voltage Sensitivity approx. 20μV/div.
Sensitivity Changeover
G0 - Approx. 11kΩ (input Resistance)
G1 - Approx. 1/11 of G0 Sensitivity
G2 - Approx. 1/11o of G0 Sensitivity
Power Source: 1 9V Battery (JIS6F22)
Battery life: Approx. 300 Hours
Operating Temperature Range: 5 to 35°C (41 to 95°F)
Humidity Range: 85% Max, Relative Humidity
Dimensions: 227（W）×183（H）×93（D） mm (excluding protrusions)
Weight: Approx. 2.6kg
