YOKE YK-TUF2000P-TL1K Portable Ultrasonic Flow Meter

Specification model: YK-TUF2000P-TL1K

Measuring medium: Water

Measuring range:DN300-6000

On-site pipe diameter: --

Accuracy grade: ±1.0%

Display mode: on-site display

Signal output: 4-20mA

Power supply: Ni-MH rechargeable battery

Pressure rating: --

Process connection: external paste connection

Temperature range: -40~+90℃

Probe type: Large probe

Protection level: IP65

Pipe material: Pipe material: PVC, mild steel, cast iron,

HDPE and stainless steel, etc.

Additional functions: with printing function, dedicated

for inspection

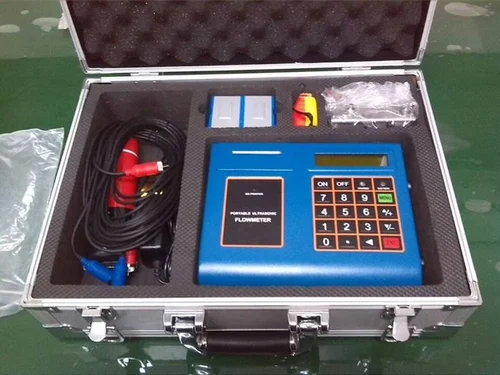

Accessory accessories: Ultrasonic special signal cable,

data cable, power adapter, ultrasonic special couplant

*1, pipe clamp *1,English manual, printing paper,

aluminum alloy protective case.

Packing size: 470*370*190mm

Gross weight: 11.5kg
