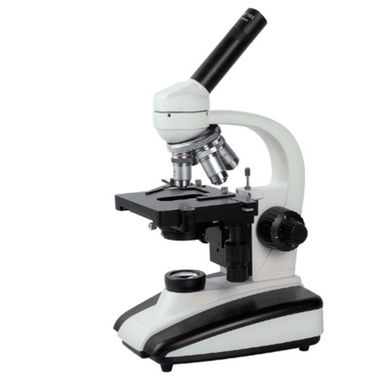

YOKE XSP-1CA Monocular Microscope

Monocular Monocular: 45 °, inclined 360 ° ,rotatable

Magnification: 40 times to 1600 times

Nosepiece: Quadruple Nosepiece

Eyepiece: WF10X/Ф18mm,WF16X/Ф11mm

Objective: 4X/0.10,10X/0.25,40X(S)/0.65,100X(S)oil/1.25

Loading Platform: Double mobile platform , 125*120mm

moving range: 70*30mm

Condenser: N.A.1.25 ,in the Abbe condenser adjustable with a variable optical bar and filter

Power supply: powered by 220V / 20W halogen lighting

Focusing mechanism: 15mm Coaxial coarse focusing mechanism

Tube length: 160mm

Fine Division: 0.002mm

-Technical parameters contrast:

TUBE: Monocular

THE CONDENSER AND LIGHTBAR: Abbe condenser variable iris diaphragm and filter

EYEPIECE: Huygens eyepiece H5X,H10X,H6X

ACHROMATIC OBJECTIVE: 10X, 40X(S), 100X(S)

LIGHTING: Halogen lamp 6V/20W

POWER SOURCE: Nature light source
