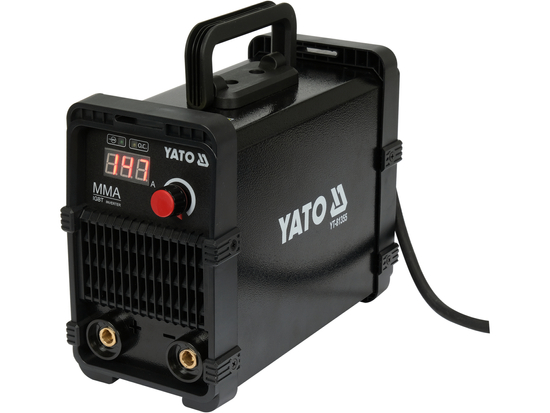

YATO YT-81355 Inverter Welder Mma (140A, 230V)

Welder type: IGBT

Max. welding current: 140 A

Min. welding current: 30 A

Voltage: 230 V AC

Frequency: 50/60 Hz

Power factor: 0.73

Dimensions: 267 × 128 × 207 mm

Electrode diameter: 1.6–3.2 mm

Duty cycle: 15%

Power source efficiency: 80%

CPU processor: Yes

VRD voltage reduction system: Yes

Arc force: Yes

Hot start: Yes

Display type: LED

Display range: 999

Overheat protection: Yes

Anti-stick: Yes

Power generator supply: Yes

Windings insulation class: F

Electrical insulation class: I

Protection rating: IP21

Weight: 3.97 kg

Set includes: Welder, 150 A grounding clamp with 1.2 m cable (10 mm²), 200 A electrode holder with 1.8 m cable (10 mm²), 2.4 m power cord, shoulder strap

Application: Welding with coated electrodes (MMA method) using direct current; suitable for acidic and basic electrodes. Applicable for steel, stainless steel, cast iron, copper, aluminum, and other metals.

Welding process: MMA
