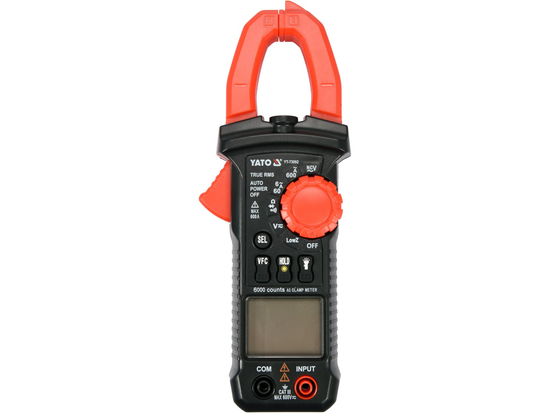

YATO YT-73092 Clamp Converter

AC voltage measurement: 0–600 V AC

DC voltage measurement: 0–600 V DC

AC current measurement: 0–600 A

Resistance measurement: 0–60 MΩ

Capacitance measurement: 0–20 mF

Frequency measurement: 0–60 MHz

Continuity test range: 0–120 Ω

Continuity test: yes

Diode test: yes

Battery test: yes

VFC low-pass filter: yes

TRUE RMS: yes

Data Hold: yes

Non-contact AC voltage detection (NCV): yes

Dimensions: 191 × 70 × 31 mm

Material: ABS

Maximum clamp opening: 26 mm

Maximum cable diameter for clamp measurement: 18 mm

Display type: LCD

LED backlight: yes

Display count: 5,999

Auto-ranging: yes

Sampling rate: 2.5–3 readings/s

Audible signal: yes

Auto power-off: 15 min

Flashlight function: yes

Power supply: battery

Battery type: 2 × 1.5V AAA

Operating temperature: 0 ~ 40°C

Storage temperature: -10 ~ +50°C

Weight: 0.19 kg

Application: electrical measurements and diagnostics.
