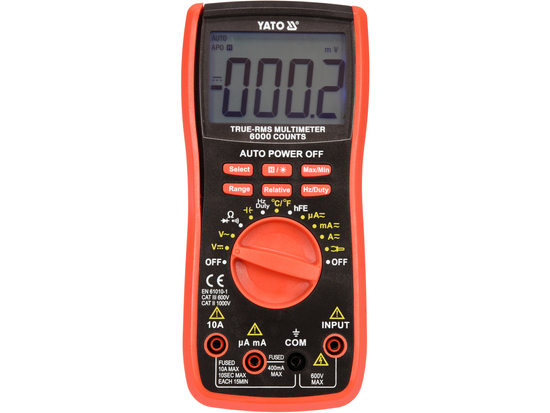

YATO YT-73085 Digital Multimeter (600VAC/DC, 20AAC/DC, True RMS)

AC voltage measurement: 0–600 V AC

DC voltage measurement: 0–600 V DC

AC current measurement: 0–20 A

DC current measurement: 0–20 A

Resistance measurement: 0–20 MΩ

Capacitance measurement: 0–60 mF

Frequency measurement: 0–60 MHz

Transistor hFE measurement: PNP, NPN

Temperature measurement: -40 ~ +1370°C

Duty cycle measurement: 0.1–99%

Continuity test range: 0–100 Ω

Diode test: yes

Conduction test: yes

Minimum value measurement (MIN): yes

Maximum value measurement (MAX): yes

TRUE RMS: yes

Data Hold: yes

Dimensions: 188 × 86 × 44 mm

Material: ABS

Display type: LCD

LED backlight: yes

Display count: 5,999

Auto-ranging: yes

Sampling rate: 2 readings/s

Audible signal: yes

Auto power-off: 15 min

Magnetic hook: yes

Fuse: 600 V / 10 A, 600 V / 400 mA

Power supply: battery

Battery type: 9V (6F22)

Operating temperature: 0 ~ 40°C

Storage temperature: -10 ~ +50°C

Weight: 0.30 kg

Application: electrical measurements and diagnostics

Connection compatibility: YT-73090
