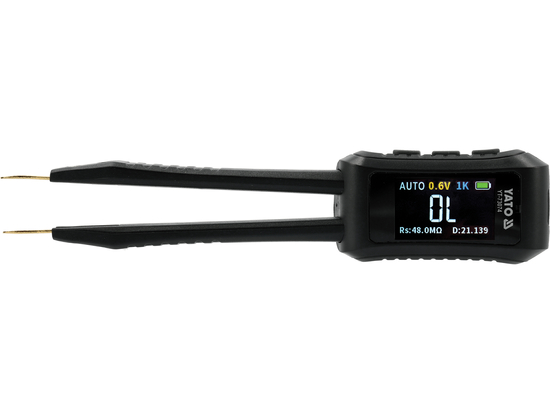

YATO YT-73074 Lcr Tweezers Bridge Tester (0.6V, 10000Hz, 60 H, 10 MΩ, 20 mF)

Measuring equipment category: CAT II

Measuring voltage: 0.3 V, 0.6 V

Measurement frequency: 100 Hz / 1000 Hz / 10000 Hz

Inductance measurement: 10 µH – 60 H

Resistance measurement: 10 mΩ – 10 MΩ

Capacitance measurement: 1 pF – 20 mF

Diode test: yes

Functions: ESR (capacitor resistance), dissipation (energy loss in a capacitor), Q factor

Data Hold: yes

Dimensions: 146 × 30 × 18 mm

Material: ABS

Display range: 9999

Display type: OLED (adjustable)

Auto-ranging: yes

Sampling rate: 1 reading/s

Audible signal: yes

Auto power-off: 5–120 min

Low battery indicator: yes

Power supply: rechargeable battery

Battery type: Li-Po

Battery voltage: 3.7 V DC

Battery capacity: 500 mAh

Charging port: USB Type-C (charger not included)

Operating temperature: 5 ~ 35°C

Storage temperature: -10 ~ +50°C

Relative operating humidity (Rh): <75%

Protection rating: IP20

Weight: 37 g

Application: quick assessment of electronic components without disassembly and diagnostic use in service work.
