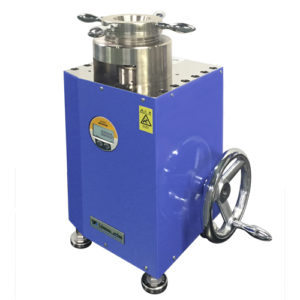

Yasuda 516 Erichsen Cupping Tester (Manual)

Test Plate: Steel Plate, T0.3 to 1.25 mm W&L Min. 70 mm to Max. 90 mm

Dice:

+ Outer Diameter φ55 ± 0.1 mm

+ Inner Diameter φ27 ± 0.05 mm

+ Edge R0.75 ± 0.05 mm

Holder Ring:

+ Outer Diameter φ55 ± 0.1 mm

+ Inner Diameter φ33 ± 0.1 mm

+ 0.05 mm Scale Attached

Punch: Hemispherical shape, φ20 ± 0.05 mm

Push Measuring: Digital Dial Guage: Scale 0.01 mm, Stroke Max. 20 mm, Digital Display

Push Speed: Manual, 0.2 mm/ 1 turn

Option: Mirror, Magnifier, Lighting Device

Dimensions/ Weight (Approx.): W340 × D200 × H400 mm/ 35 kg
