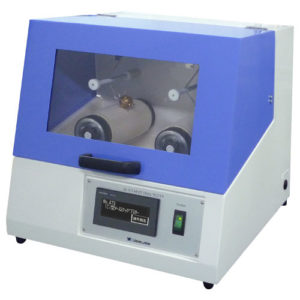

Yasuda 473 ICI Type Mace Snag Tester

Hangings: 2 Hangings (Individual Motioning type)

Specimen: 200 × 330 mm

Mace: φ31.8 mm, Mass 160 g (Including Needles)

Needle: 11 pcs, Top R0.127 mm, L9.5 mm

Rotating Drum: Outer Diameter φ82 mm (Rubber T3 mm), W210 mm

Drum Rotation Speed: 60 rpm

Felt: T3.2 mm, W165 mm

Guide Rod: Outer Diameter φ10 mm, W122 mm

Counter: 6 Digits Preset Counter

Drum-Guide Rod Distance: 60 mm

Mace-Guide Rod Distance: 46 mm

Accessories: Rubber Ring: 4 pcs, Setting Gauge: 1 pc, Specimen Setting Tool

Option: Safety Cover, Cabinet for Determination

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/ Weight (Approx.):

+ Tester Body: W500 × D490 × H430 mm/ 40 kg

+ Cabinet: W475 × D590 × H475 mm/ 30 kg
