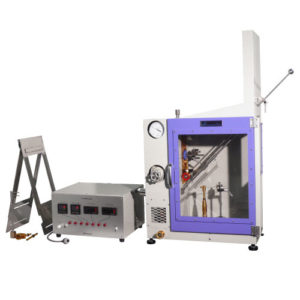

Yasuda 455 45° Flammability Tester for Textile (B Method Spec)

Test Method: B Method Spec (Surface Flaming Test)

Specimen: 220 × 400 mm

Burner: Air Mix Burner: Flame Height 24 mm

*Pressure of 3.92 kPa/hr

Timer:

+ Ignition Timer: Max. 999.9 sec

+ Flaming Timer: Max. 99,999.9 sec

+ After-flame Timer: Max. 99,999.9 sec

+ After-glow Timer: Max. 99,999.9 sec

Igniter: Automatic Ignition (Plug Method)

Accessories: Pearlite Plate, Specimen Holder

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Heat Source: Liquid Nitrogen Gas Type 2 No.4

Dimensions/ Weight (Approx.):

+ Tester Body: W560 × D330 × H940 mm/ 25 kg

+ Control Box: W370 × D300 × H220 mm/ 9 kg
