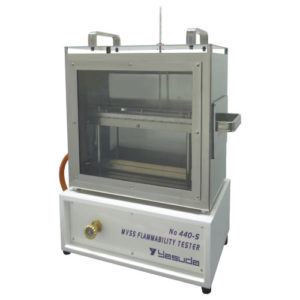

Yasuda 440-S2 MVSS Flammability Tester (JASO)

Standard: JASO

Specimen(Standard):

+ W 100 mm

+ T 356 mm

Bunsen Burner: Inner φ10 mm

Heat Source: Natural Gas (Calorific Value38 MJ/m3)

Specimen Holder: U-shape with Groove (Pitch 25 mm),Pin Tray

Heat-Resisting Wire: φ0.25 mm

Accessories: Specimen Attachment Set, Gas Lighter, Termometer, LPG Gas Hose,

Hose Band, Flame Gauge, Heat-Resisting Wire, Specimen Holder (Only No.440-S1), Bobbin (Only No.440-S1), Saucer (Only No.440-S2)

Option: Timer (Flaming Time Control), Spirit Level, Heat-Resisting Wire(Spare)

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz (with Timer)

Dimensions/ Weight (Approx.): W480 × D250 × H580 mm/ 22 kg

Datasheet
