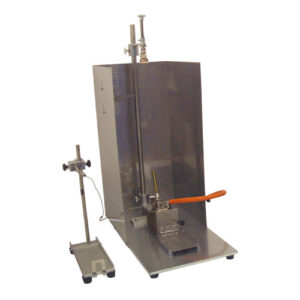

Yasuda 252-UL-1581 Electric Wire Flammability Tester

Chamber: 1.6 × 1.6 × 1.6 m (Volume Approx. 4 m3)

Specimen: L450 ± 10 mm

Burner: L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm

Burner Base: Inclination Angle 20°

Burner Calibration Device:

+ Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min)

+ Manometer: Max. 400 (± 200) mmH2O (Scale 1 mmH2O) (Standard 125 ± 15 mmH2O)

+ Timer, Thermometer, Slug

Accessories: Gas Lighter, Flame Gauge, Ring Stand, Gauge for Slug, Dry Cotton Pad

Power Source: Tester Body: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Calibration Device: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Heat Source: Methane Gas (Purity: 98 % Over)

Dimensions/ Weight (Approx.): W1,700 × D1,700 × H2,500 mm, 380 kg (Chamber)
