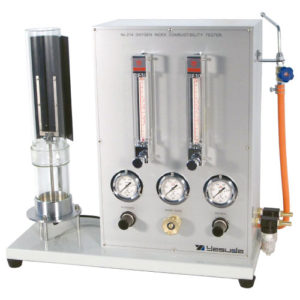

Yasuda 214 Oxygen Index Flammability Tester

Glass Column: Inner φ75 + 3 mm, H450 ± 5 mm

Flow Meter:

+Oxygen: Max. 8.6 L/min (Scale 0.1 L/min)

+Flow Meter: Max. 11 L/min (Scale 0.1 L/min)

Pressure Gauge:

+Oxygen: Max. 0.1 MPa (Scale 0.002 MPa)

+Nitrogen: Max. 0.1 MPa (Scale 0.002 MPa)

+Mixed Gas: Max. 0.1 MPa (Scale 0.002 MPa)

Burner: Flame L6 to 25 mm (Adjustable)

Specimen: Plastic, Rubber and Textile

Accessories: U-shape Specimen Holder, Glass Bead

Option: Thermometer, Jig for Hoist Specimen, HighTemperature Testing Spec (HT),Oxygen Density Analyzer

Heat Source: Methane Gas (Purity: 98 % Over ) or Urban Gas

Gas Supply: Oxygen and Nitrogen

Dimensions/ Weight (Approx.): W600 × D290 × H660 mm/ 30 kg
