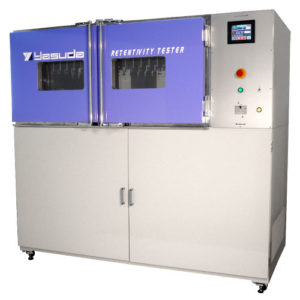

Yasuda 145-D Retentivity Tester

Hangings: 3, 6, 10 or 20 Hangings (4 kinds)

Specimen: W25 mm or 12 ± 0.5 mm, L150 mm

Test Plate: W50 mm, L125 mm, T1.1 mm or More, Material: SUS304 Made

Weight Load: Initial 200 gf to Max. 1 kgf　(Standard 1,000 g ± 5 g)

Chuck:

+Upper: Hook type

+Lower: Flat type (W30 mm)

Upper and Lower Chuck Distance: 200 mm

Chuck Stroke: Max. 45 mm, Electric Concurrent Elevating Device (Up and Down Automatic Stop)

Temperature Range: Max. 150 °C

Timer: Preheating Time Setting, Drop Time Measuring, Test Time Setting

Option: Displacement Measurement Spec, Low Temperature Oven, Constant Temperature & Humidity Oven, Oven Light, 90° Peeling Spec
