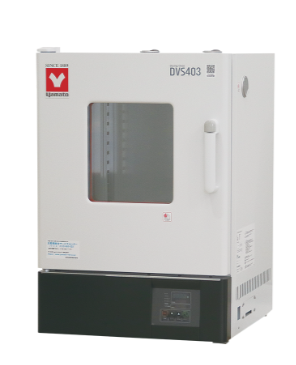

Yamato DVS403 Natural Convection Oven (99L, +5～260℃)

Method: Natural gravity convection

Operating temp. range: Room temp.＋5～260℃

Temp. control accuracy: ±1℃（at 260℃）

Temp. distribution accuracy: ±5℃（at 260℃）

Max. temp. reaching time: Approx. 75 min.

Interior material: Stainless steel

Exterior material: Electrogalvanized steel sheet paint

Heat insulating material: Glass wool

Heater: Stainless pipe heater

Heater: 1.2kW

Observation window: 250×280 mm Chemically strengthened glass×3

Cable hole: 30 mm l.D.×1 pcs.(right side)

Exhaust port: 30 mm l.D.×2 pcs.(on top)

Temp. controller: P.I.D. control

Temp. setting method: Digital setting method using the dedicated operation menu key and ▲ ▼ key

Temp display method: Measurement temperature display: Green LED digital display (resolution: 1 ° C) Set temperature display: Red LED digital display (resolution: 1 ° C)

Timer: 0 minutes to 99 hours 59 minutes and 100 to 999 hours 50 minutes (timer weight function, ON / OFF possible)

Operation function: Fixed value operation, program operation, quick auto stop, auto stop, auto start, program auto start

Program mode: Program operation 6 pattern selection (30 steps x 1, 15 steps x 2, 10 steps x 3), step weight function, step hold function, step skip function

Additional functions: Calibration offset function, key lock function, power failure recovery mode selection function, pattern repeat function

Heater circuit control: SSR drive

Sensor: K thermocouple (for temperature control, for independent overheating protector)

Safety device: Self-diagnosis function (temperature sensor abnormality, heater disconnection, SSR short circuit, memory abnormality, internal communication abnormality, temperature input circuit abnormality,

Safety device: automatic overheating prevention function), overheating prevention device, overcurrent leakage breaker

Shelf plate load: Approx. 15kg / pcs.

Shelf support step number / pitch: 9 steps / 30mm

Shelf plate / Shelf bracket: Stainless punching metal, 2 pcs. / 4 pcs.

Internal dimensions（W×D×H mm）: 450×490×450mm

External dimensions（W×D×H mm）: 560×601×820mm

Remarks(dimensions): 99L

Power Source:

Single phase AC100V 12.5A

Breaker capacity and power supply equipment capacity 15A

Weight: 48kg
