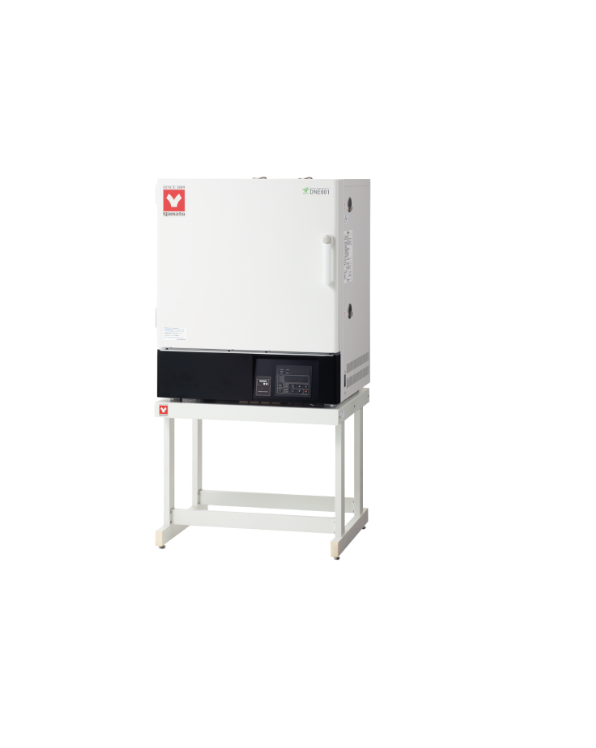

Yamato DNE601 Forced Convection Oven

Operating temp. range: Room temp. +20 to 210°C

Temp. adjustment accuracy: ±0.5°C (at 210°C)

Temp. distribution accuracy: ±2.0°C (at 210°C)

Max. temp. reaching time: Approx. 70 min.

Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Operation function: Fixed temperature operation, Program operation, Auto start, Auto-stop, Quick automatic stop

Program mode: Program operation; Maximum 32 steps, Repeat function

Additional functions: Timer Function (Actual Timer within 24hrs.), Total operation hours timer (to 65535hrs.), Calendar time ( 24 hours),

Shelf plate with standard load: Approx. 15kg/piece

Heat insulating material: Glass wool

Heater: Stainless pipe heater

Heater: 1.2kW

Fan Type: Scirocco fan

Motor: Condenser type

Cable hole/Air in-take hole: 33mm I.D. (the right side) 1pc. each

Temp. controller: PlD control by microprocessor

Temp. setting method: Digital setting by UP/DOWN key

Temp display method: Digital Display by Green LED

Timer/Min.division: 1 min. to 99 Hrs. 59 min. /1 min.

Additional functions: Calibration offset, Power discharge, CO2 discharge, Power failure return mode, User configuration information

Heater circuit control: Triac zero-cross control

Safety countermeasures: Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, SSR- short, Main relay abnormal, Automatic overheating prevention),

Safety countermeasures: Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection

Shelf support step number: 13 steps

Shelf support pitch: 30 mm

Accessories Shelf plate: Stainless steel, 2 pcs.

Accessories Shelf support: 4 pcs. (1 pair - 2 pcs. is fixed)

Method: Forced air circulation

Internal dimensions（W×D×H mm): 600×500×500mm

External dimensions（W×D×H mm): 730×695×910mm

Remarks(dimensions): 150L

Power Source: AC115V 12A Single-phase

Weight: 77kg
