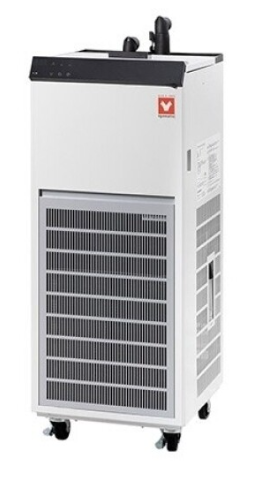

Yamato CF812-D Low Temp Circulator (−20 °C ~ 30 °C)

Circulation Type: External closed circulation

Circulating Water: Tap water, nyrbine (liquid temperature below 10 °C)

Operation Temperature Range: 5 °C to 35 °C

Temperature Control Range: −20 °C to 30 °C

Temperature Adjustment Accuracy: JTM K05 ±1 °C

Temperature Fluctuation: JIS 3.0 °C

Cooling Capacity: Approx. 1320 W at 10 °C liquid temp; Approx. 700 W at −10 °C liquid temp

Max. Flow Rate (60 Hz): Approx. 14 L/min

Max. Lift (60 Hz): Approx. 14.3 m

Temperature Control: Refrigerator ON/OFF control

Temperature Sensor: Pt100Ω

Controller: White LED digital display, key input, minimum digit 1 °C

Refrigerator System / Rated Capacity / Refrigerant: Air-cooling / 650 W / R407C

Connection: One-touch connector (Flexible rotary L type)

External Circulation Nozzle: Outer diameter Ø10 mm rigid hose connection (inner Ø9 mm flexible hose with attached nozzle)

Water Circulating Pump (60 Hz): Magnet pump 65 W

Safety Features: Electric leakage breaker, temperature sensor abnormality, upper/lower temperature alarm, upper/lower temperature abnormality, refrigerator overload relay, fan motor protection, pump thermal protector, refrigerator protection delay timer, refrigerator high-pressure switch

Other Features: Drainage hose, circulation port condensation drainage hose, intake port dustproof filter, cooling operation switch, circulation pump switch, calibration offset, power failure recovery function (selected)

Inner Tank Material: Stainless steel

Inner Tank Capacity (Liquid Volume): Approx. 15.5 L (liquid volume 14 L)

External Dimensions: W340 × D370 × H838 mm

Weight: Approx. 43 kg

Power Source (60 Hz) / Rated Current: AC220 V 6 A (15 A)

Accessories: Hose nozzle × 2 pcs, condensation drain hose (Ø12 mm × 1 m) × 1 pc, hose clamp × 2 pcs
