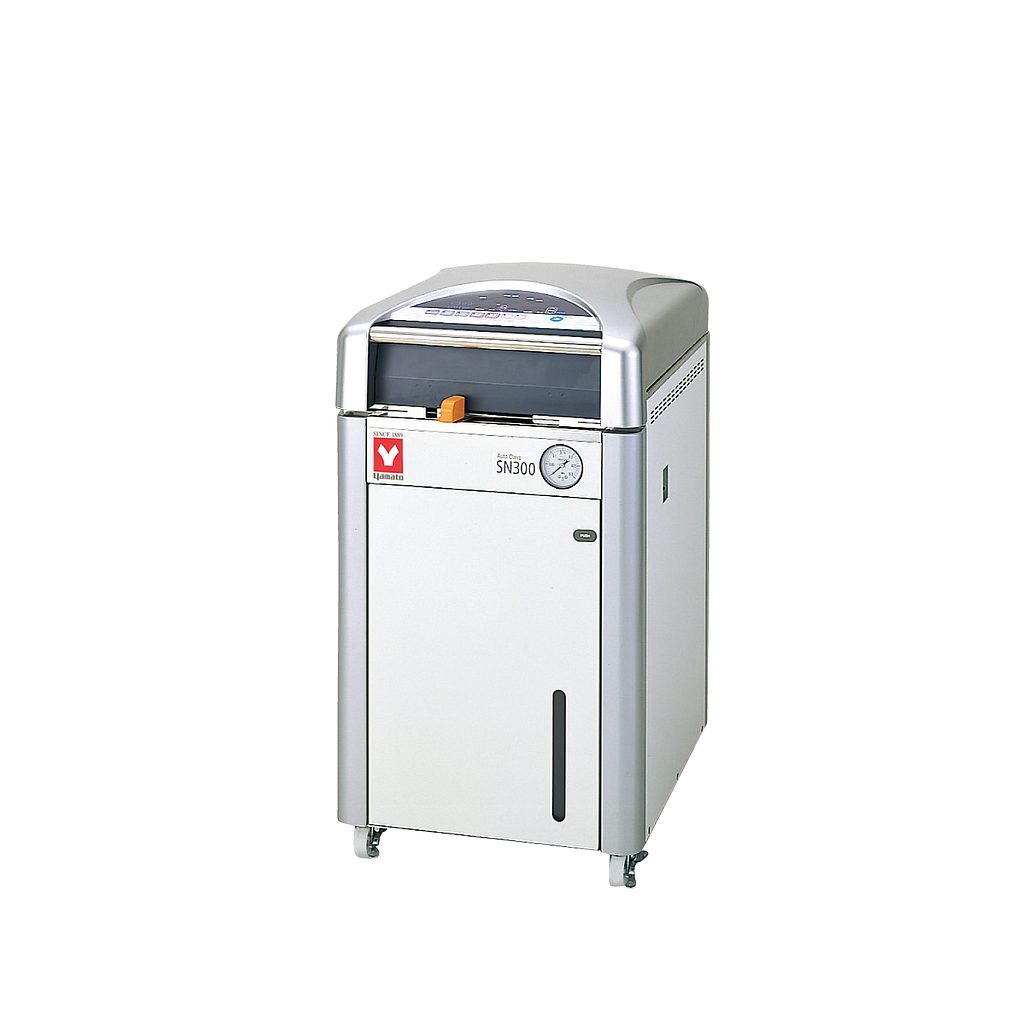

Yamato SN310 Steam Sterilizer (32L)

System: Automatic high-pressure steam sterilization

Operating temperature range: 45～135℃　45～80℃（Preheating temperature）/45～60℃（Heat-retention process）/65～100℃（Solution process）/105～135℃（Sterilization）

Max. working pressure: 0.255MPa

Ambient temperature: 5～35℃

Lid: Manual upward opening with an interlock for safety

Heater: 100V, 800W×2

Exhaust valve: One exhaust valve and one slow release valve

Connection ports for optional accessories: Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (Branching from the solenoid valve tubing)

Cooling fan: Axial fan motor

Temp. controller: PID control by microprocessor

Accessories: 2 pcs. stainless steel mesh basket (Dia.266×D204mm), OSM-70/Vapor cup×1, Drain bottle×1, Drain board×1, Filter×1

Internal dimensions（φ×H mm）: φ300×445mm

External dimensions（W×D×H mm）: 460×590×848mm

Remarks(dimensions): Internal capacity 32L

Power Source: AC200～240V Single phase

Weight: 75kg
