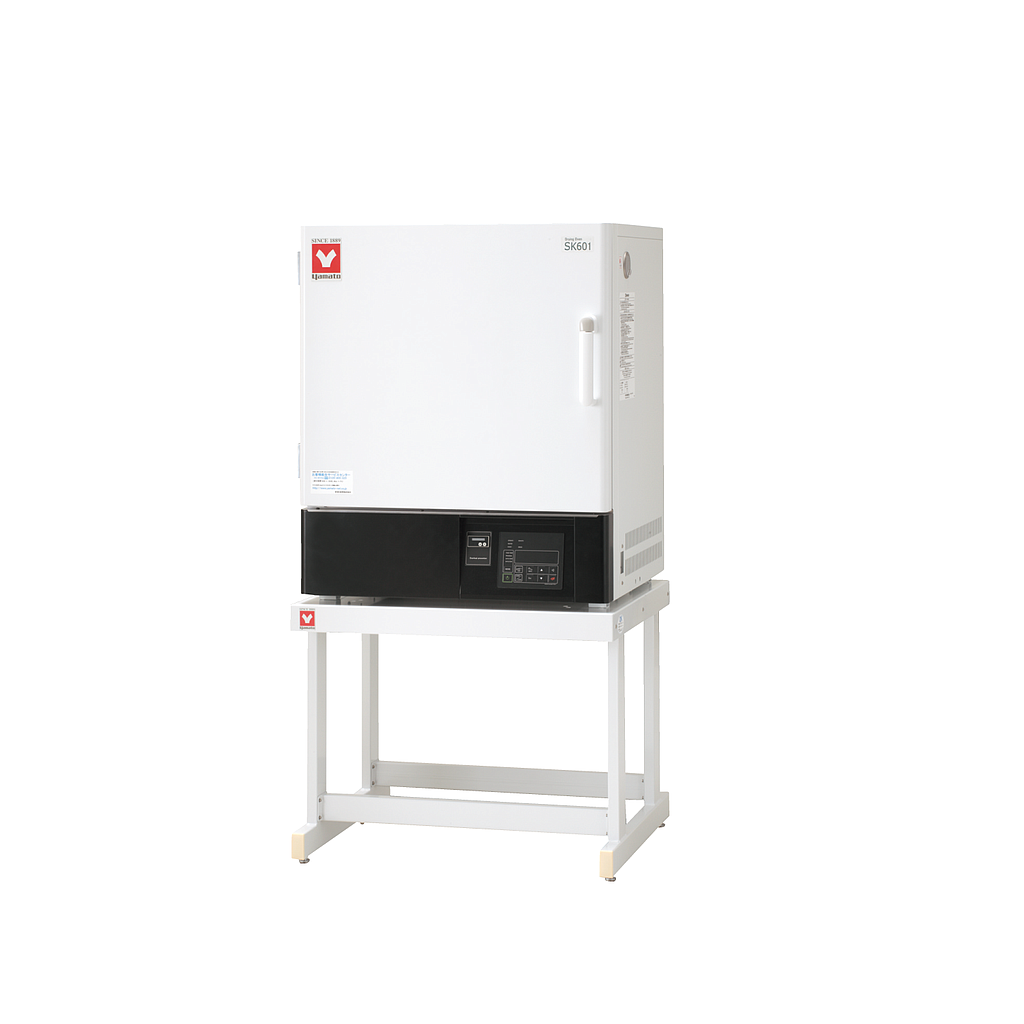

Yamato SK601 Dry Sterilizer (162L, 1.36kW)

Circulation method: Natural convection (for laboratory use only)

Operating temp. range: Room temp. +5~260°C

Temp. adjustment accuracy: JTM K05 ±1°C (at 260°C)

Max. temp. reaching time: Approx. 60min.

Interior/Exterior: Stainless steel plate/chrome-free electrogalvanized steel sheet with chemical proofing coating

Insulation Material: Glass wool

Heater: SUS 1.36kW

Sensor: K type Thermocouple

Cable port: I.D. 33mm (right side)

Exhaust port: I.D. 33mm×2 (on top)

Temp. control: PID control

Internal dimensions（W×D×H mm）: 600×540×500mm

External dimensions（W×D×H mm）: 710×650×870mm

Remarks(dimensions): Internal capacity 162L

Power Source: AC115V/220V

Weight: 62kg
