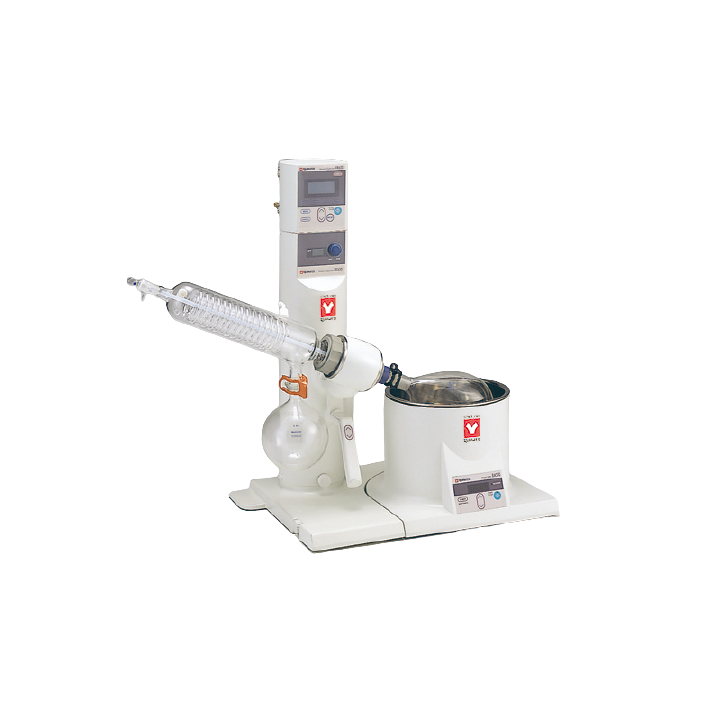

Body RE 601 type+glass set A+water bath BM400 type combination product.
Motor: DC brushless motor (for rotation)
Controller: Vacuum regulator VR600
Lift stroke: 130ｍｍ
Setting range of vacuum: 0 to 981hPa
Measurable range of vacuum: 0 to 1033hPa
Resolution of vacuum: 1hPa
Setting range of hysteresis: 1 to 50hPa
Resolution of vapor temperature indicator: Selectable (either 1°C or 0.1°C)
Readout of cooling water temperature: Depending on indicator (option)
Resolution of cooling water temperature indicator: 1℃ or 0.1℃
Operation modes: Free, fixed temperature, fixed temperature timer, descending, and descending timer
Setting range of timer: 1-999 minutes in increments/decrements of 1 minute for preset operations, 1-99 minutes for descending timer operations
Memory: 10 programs for each operation
Data operation: N/A
Speed (rpm) setting: Rotation: Control knob Vacuum adjustment: Key pad
Safety measures (drive unit): Circuit breaker, rotor for overload protection, manual adjustment of lift's lower limit, lift-up switch during power outage
Safety measures (vacuum regulator): Self-diagnostic functions, main unit/bath synchronized stop at malfunction, error display
Synchronized control feature: Selection of automatic bath stop or automatic insulation
Lifting feature: One-touch motorized lift system
External dimensions（W×D×H mm）: 828×400×727mm
Remarks(dimensions): When glass set A is installed. Lift-up time: 857 mm
Power Source: AC100 to 240V 1.5A
Weight: 15kg
Remarks(weight): Excluding glass · water bath/oil bath
