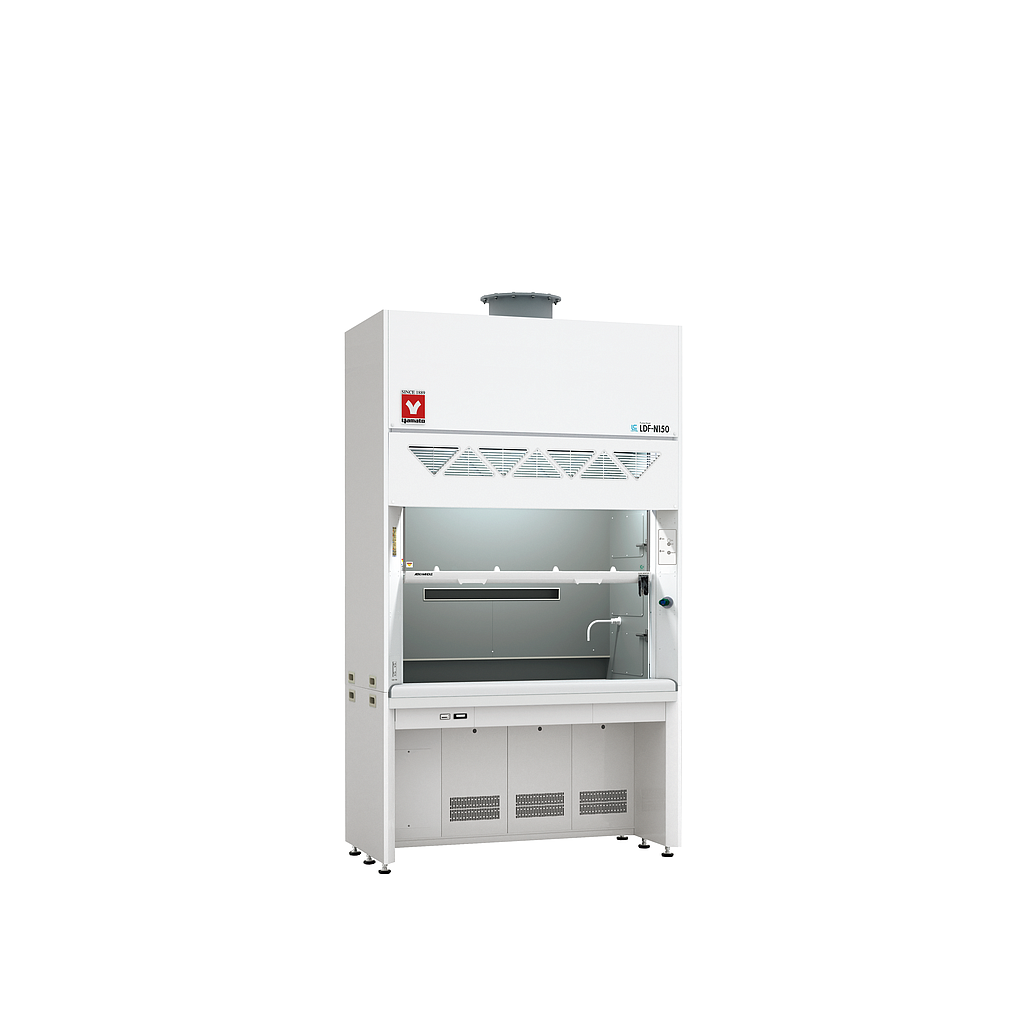

Yamato LDF-N120LU Fume Hood (12m3/min)

Exterior: Cold-rolled steel plate (chemical resistance coating)

Interior: Stainless SUS304 1mm

Working surface (selection): Stainless (L)

Glass door: Tempered glass 6mm balance weight

Water faucet: Single type 1pc

Socket: AC115V/220V×1pc

Fluorescent lamp: 32W 1pc

Case material: SUS

Adsorption: Adsorbent amount (K type) 20 kg

Timer: 0～9,999.9h (for adsorbent specification time)

Differential pressure: For pre-filter ( 0～490Pa/0～50mmH2O) 1pc

Safety mechanism: Exhaust delay timer, Door falling prevention stopper, Flow monitor

Option: Gas tap, LED, safety mechanism

Exhaust air volume: 12m3/min

Internal static pressure: 216Pa (22mmH2O)

External dimensions（W×D×H mm）: 1200×750×2600mm

Power Source: AC115/220V

Weight: 330kg
