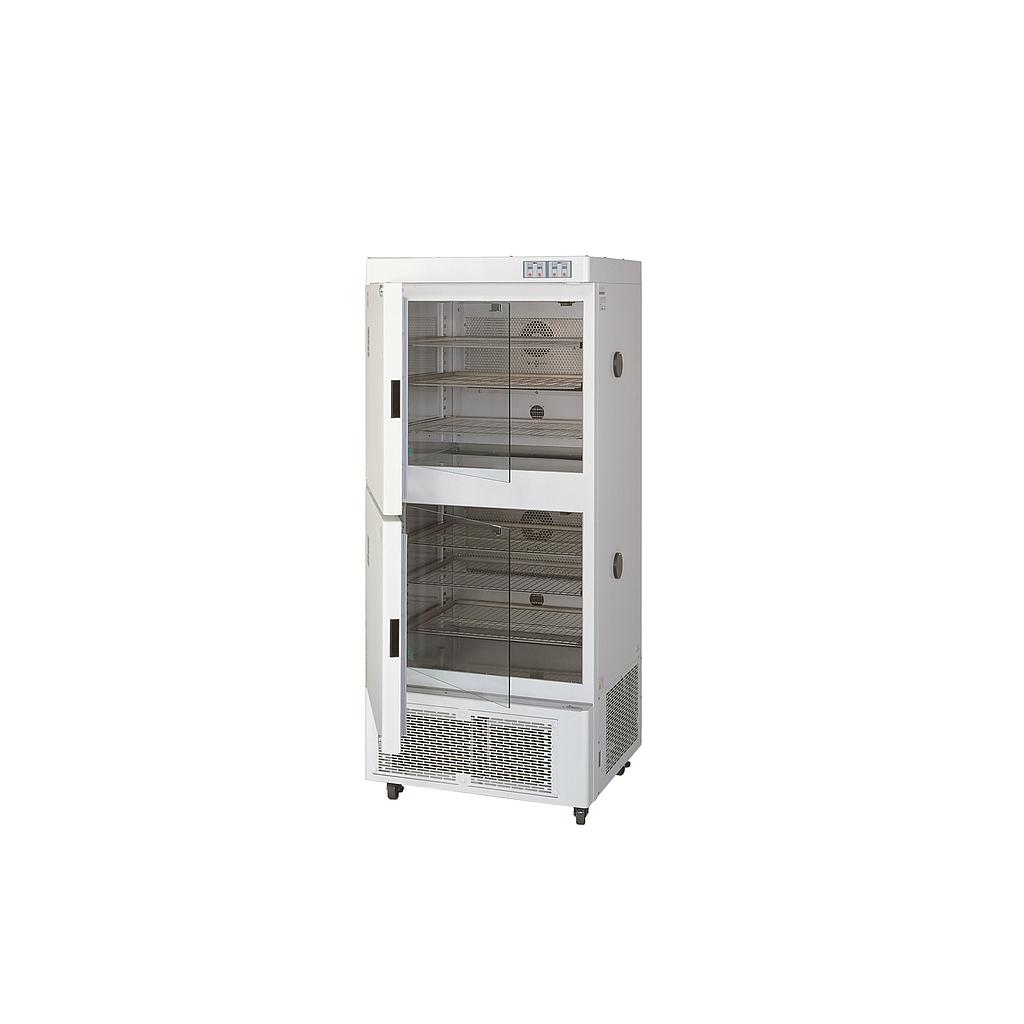

Yamato IQ822 Double Chamber Incubator (143L×2)

System: Forced Convection

Operating Temperature Range: -10～+50℃

Temperature Adjustment Accuracy: ±0.3℃(During continuous refrigeration for both upper and lower chamber)

Temperature Distribution Accoracy: ±1.0℃(at 37℃ during continuous refrigeration for both upper and lower chamber)

Time to reach the Max. Temp.: 20～+50℃：Approx. 25min.

Time to reach the Lowest Temp.: 20～-10℃：Approx. 45min.

Interior: Stainless steel

Exterior: Chrome-free electronic galvanized plated steel plate chemical-proof baking finish

Refrigerant: R404A

Defrost operation: Manual defrost (Manual ON/ Auto OFF), Cycle Defrost

Sensor: Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)

Cable Port: 50mm ID（Right side from the front for upper and lower chamber）

Temperature Control: PID control

Internal dimensions（W×D×H mm）: 600×477×500mm

External dimensions（W×D×H mm）: 710×645×1675mm

Remarks(dimensions): 143L×2 chambers

Power Source: AC220V Single-phase with step down transformer

Weight: 165kg
