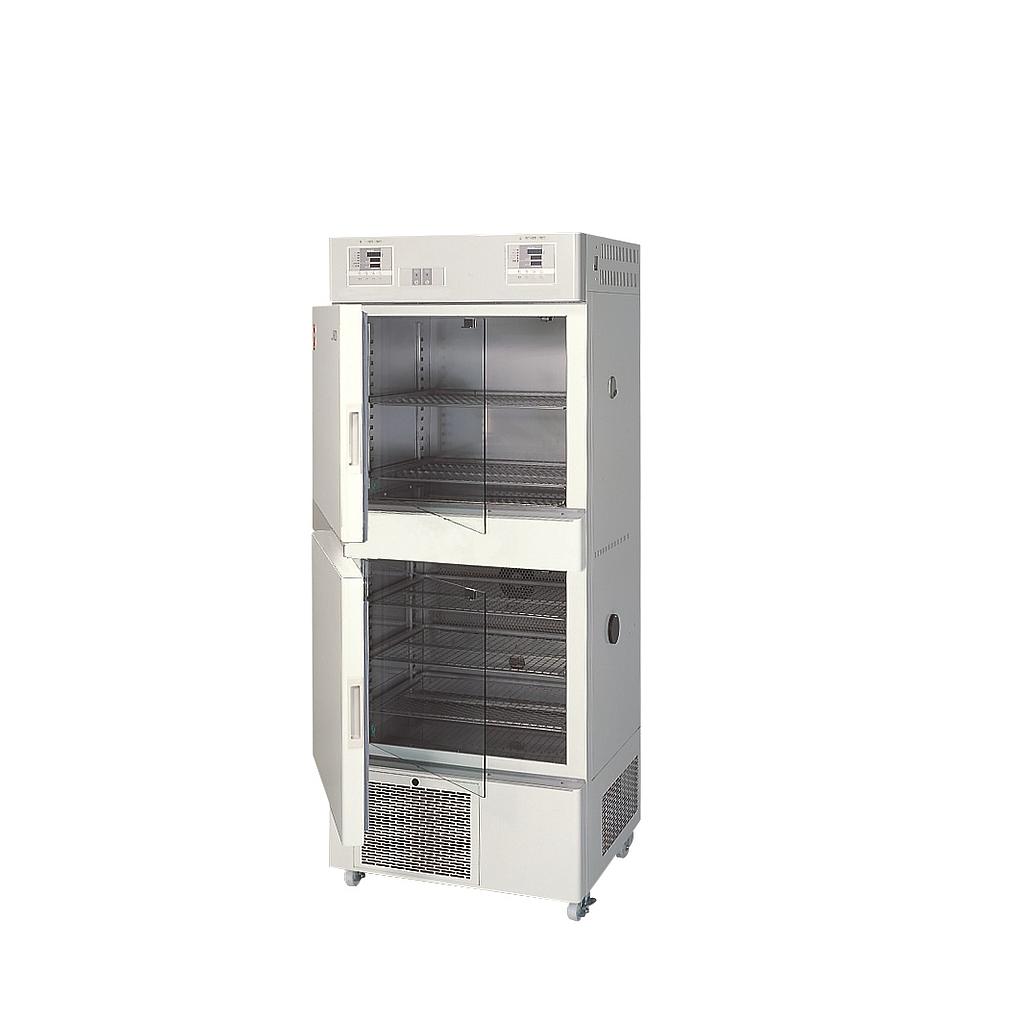

Yamato INC820 Double Chamber Incubator (150L + 143L)

System (Upper Chamber): Natural convection, Air jacket

Operating Temp. Range(Upper Chamber): Room temp.＋5℃～80℃

Temp. Adjustment Accuracy (Upper Chamber): ±0.5℃（at 37℃）

Temp. Distribution Accuracy (Upper Chamber): ±1.0℃（at 37℃）

Cable Port (Upper Chamber): 30mm ID (Right side from the front)

Exhaust Port (Upper Chamber): 30mm（with Damper）, 2 ports on the top

Internal Dimensions (Upper Chamber): 600×530×500mm

Internal Capacity (Upper Chamber): 150L

System (Lower Chmber): Forced convection

Operating Temp. Range(Lower Chamber): +4℃～50℃

Temp. Adjustment Accuracy (Lower Chamber): ±0.3℃（at continuous refrigeration）

Temp. Distribution Accuracy (Lower Chamber): ±1.0℃（at continuous refrigeration）

Refrigerator (Lower Chamber): Air cooling, 250W

Refrigerant (Lower Chamber): R404A

Interior (Lower Chamber): 600×477×500mm

Internal Capacity: 143L

Sensor: Pt100Ω

External dimensions（W×D×H mm）: 710×656×1792mm

Remarks(dimensions): 150L (Upper chamber ) + 143L (Lower chamber)

Power Source: AC220V 7A Single-phase with step-down transformer

Weight: 160kg
