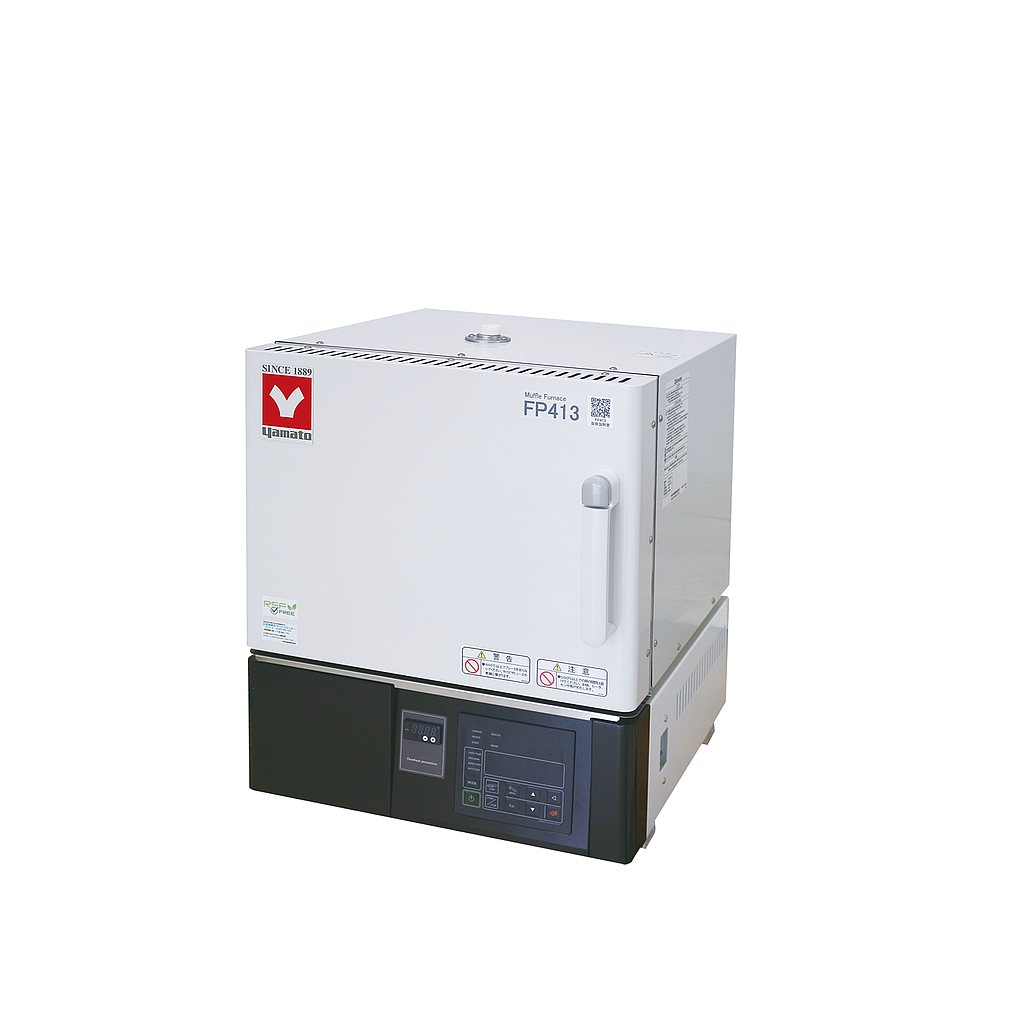

Yamato FP413 High Performance Muffle Furnace (11.3L, 3.25kW)

Operating temp. range: 100 to 1,150℃

Temp. control accuracy: ±1.0℃（at 1,150℃）

Temp. distribution: ±4.0℃（at 1150℃）

Max. temp. reaching time: Approx. 80min.

Chrome-free electro-galvanized steel plate, Chemical proof painting

Internal material: Alumina fiber

Sensor: R-thermocouple

Heater: Iron-chrome wire (Pyromax) 3.25kW

Exhaust port: ø20mm (top)

Cooling fan: 19/16W（50/60Hz）

Temp. controller: PID Z control

Accessories: Exhaust port cap, fuse, furnace floor plate

Internal dimensions（W×D×H mm）: 300×250×150mm

External dimensions（W×D×H mm）: 506×504×625mm

Remarks(dimensions): 11.3L

Power Source: Single Phase AC200V 16.5A Plug is not attached, Electric code length is 2m

Weight: 51kg

Datasheet
