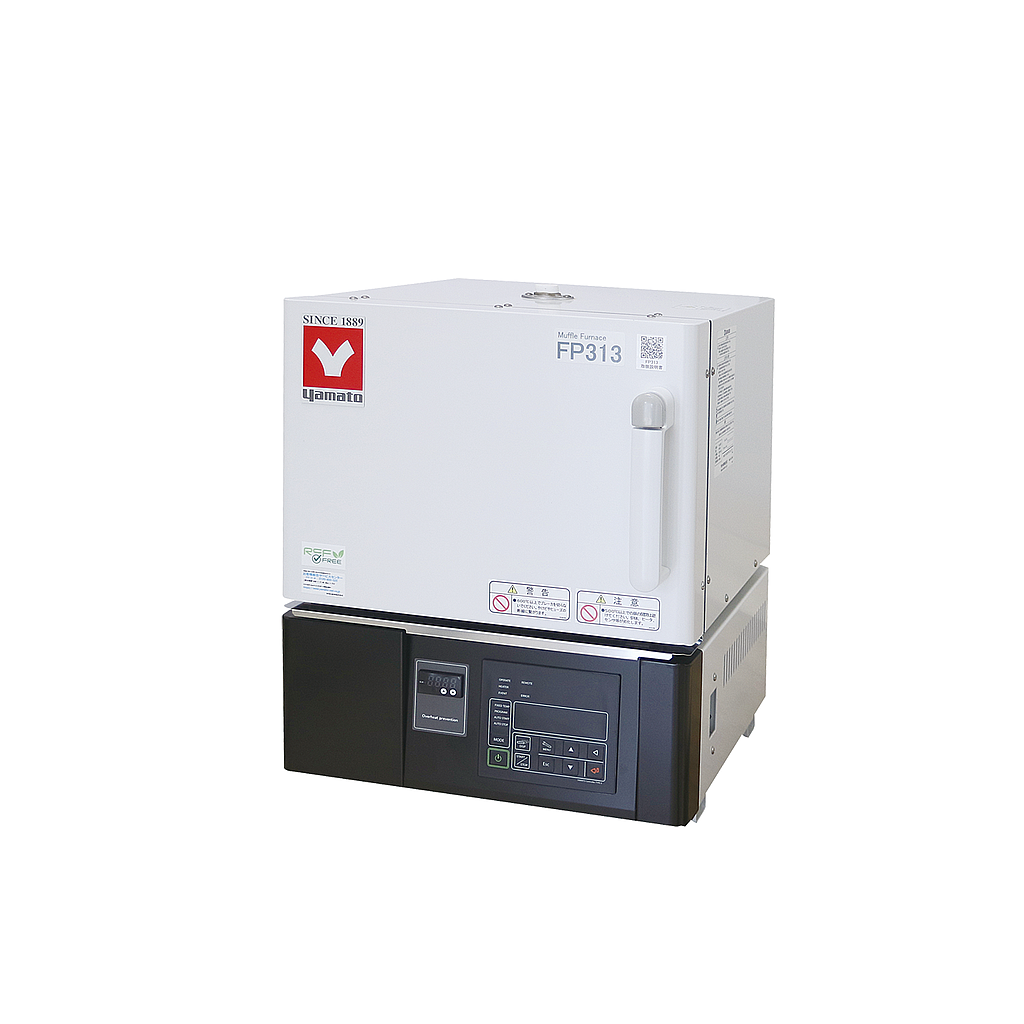

Yamato FP313 High Performance Muffle Furnace (7.5L, 2.4kW)

Operating temp. range: 100 to 1,150℃

Temp. control accuracy: ±1.0℃（at 1,150℃）

Temp. distribution: ±4.0℃（at 1150℃）

Max. temp. reaching time: Approx. 90min.

Chrome-free electro-galvanized steel plate, Chemical proof painting

Internal material: Alumina fiber

Sensor: R-thermocouple

Heater: Iron-chrome wire (Pyromax) 2.4kW

Exhaust port: ø20mm (top)

Cooling fan: 19/16W（50/60Hz）

Temp. controller: PID Z control

Accessories: Exhaust port cap, fuse, furnace floor plate

Internal dimensions（W×D×H mm）: 200×250×150mm

External dimensions（W×D×H mm）: 446×504×565mm

Remarks(dimensions): 7.5L

Power Source: Single Phase AC200V 12.5A Plug is not attached, Electric code length is 2m

Weight: 43kg
