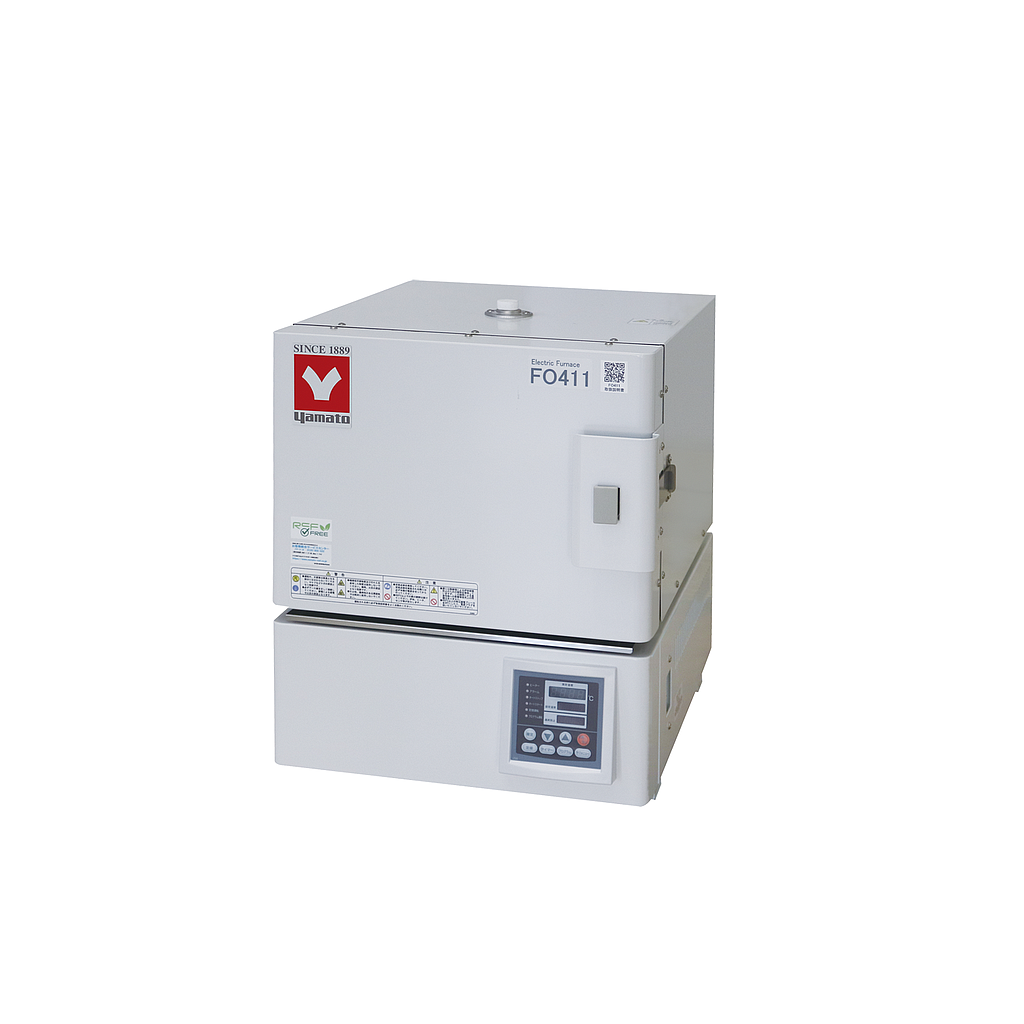

Yamato FO411 Standard Electric Furnace (9L, 2.2kW)

Operating temp. range: 100 to 1,150℃

Temp. control accuracy: ±2.0℃（at 1,150℃）

Max. temp. reaching time: Approx. 70min.

Chrome-free electro-galvanized steel plate, Chemical proof painting

Internal material: Alumina fiber

Sensor: R-thermocouple

Heater: Iron-chrome wire 2.2kW

Exhaust port: 20 mm I.D. (upper part)

Cooling Fan Type: Axial fan motor

Temp. controller: PID control by microprocessor

Accessories: 1 exhaust cap, 1 thermal fuse

Internal dimensions（W×D×H mm）: 200×300×155mm

External dimensions（W×D×H mm）: 446×554×567mm

Remarks(dimensions): 9L

Power Source: Single Phase AC200V 12A Plug is not attached, Electric code length is 2m

Weight: 38kg
