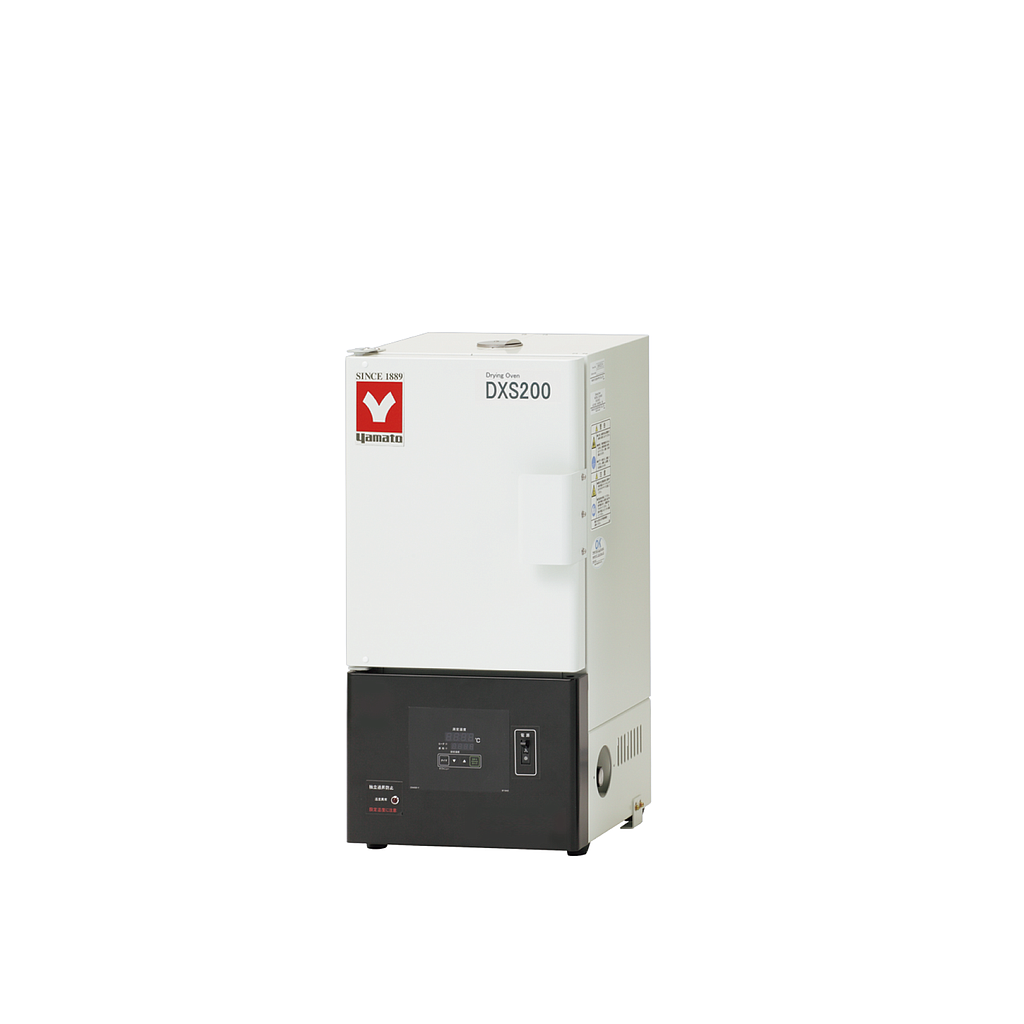

Yamato DXS200 Slim Type Natural Convection Oven (20L, 400W)

Circulation Type: Natural Convection

Operating Temp.: Room Temp. +10~210°C

Temp. Adjustment Accuracy: ±1.0°C (at 210°C)

Temp. distribution accuracy: ±10℃（at 210°C）

Max. Temp. Reaching Time: Approx. 60 min

Interior Material: Stainless Steel

Exterior Material: Chrome-free electrogalvanized steel plate with baked-on coating

Heat Insulating Material: Rock wool

Heater: Iron-chrome wire heater, 400W

Sensor: K-Thermocouple

Internal dimensions（W×D×H mm）: 240×250×340mm

External dimensions（W×D×H mm）: 320×340×685mm

Remarks(dimensions): 20L

Power Source: AC115/220V Single-phase with step down transformer

Weight: 20kg

Accessories: 2 shelfs with 4 shelf supports, Fall prevention metal fittings (1 set)
