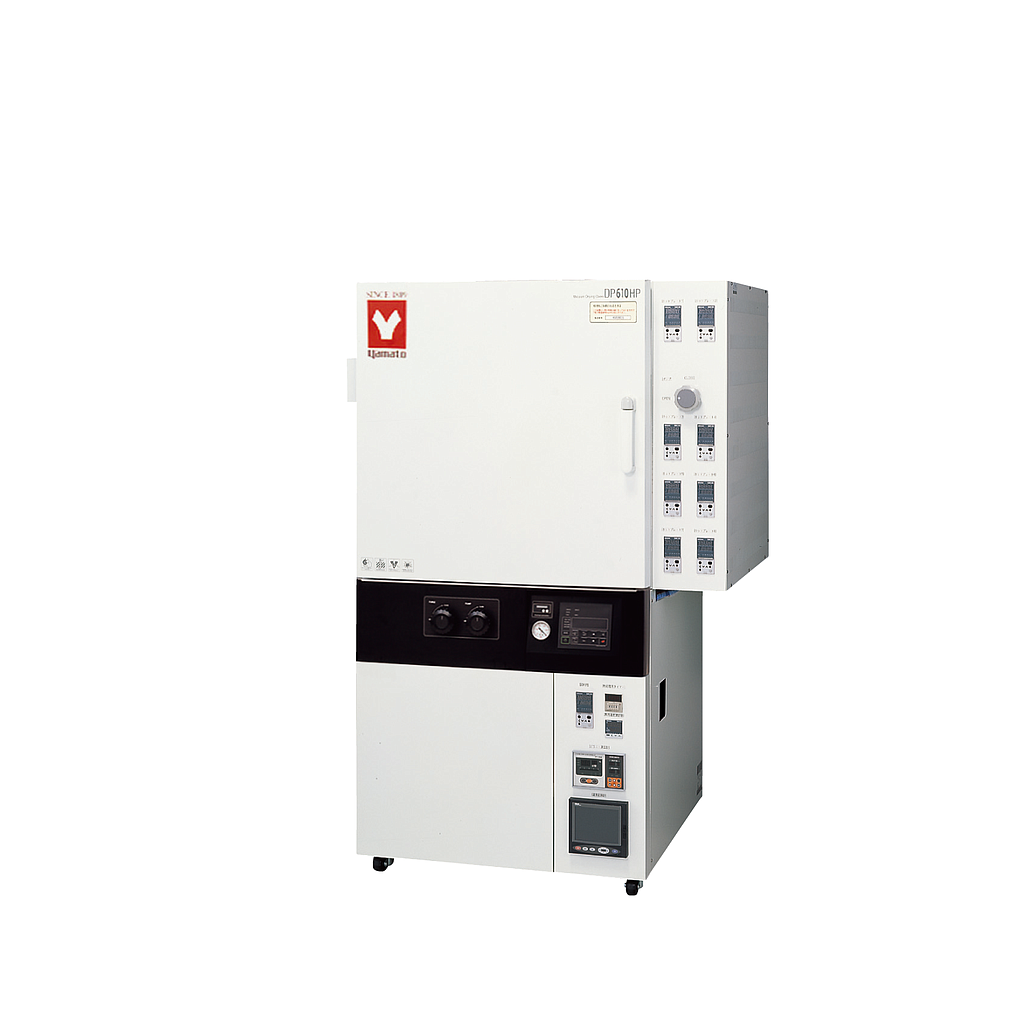

Yamato DP610HP Vacuum Drying Oven (216L, 7.2kW)

Method: Decompression chamber & shelf heating

Operating temperature range: 40 to 200 °C

Operating pressure range: 101 to 0.1kPa

Interial material: Stainless steel

External material: Chrome-free electric galvanized steel plate with baked-on coating

Heat insulating material: Rock wool

Heating method: Shelf heating + rediation heating

Shelf: Pipe heater 0.9kW x 8, total 7.2kW

Shelf dimentions: 590W x 550D x 25H mm

Internal dimensions（W×D×H mm）: 600×600×600mm

External dimensions（W×D×H mm）: 1020×820×1650mm

Remarks(dimensions): 216L

Power Source: AC220 V/ AC380V Three phase 50/60Hz with step-down transformer

Weight: 400kg
