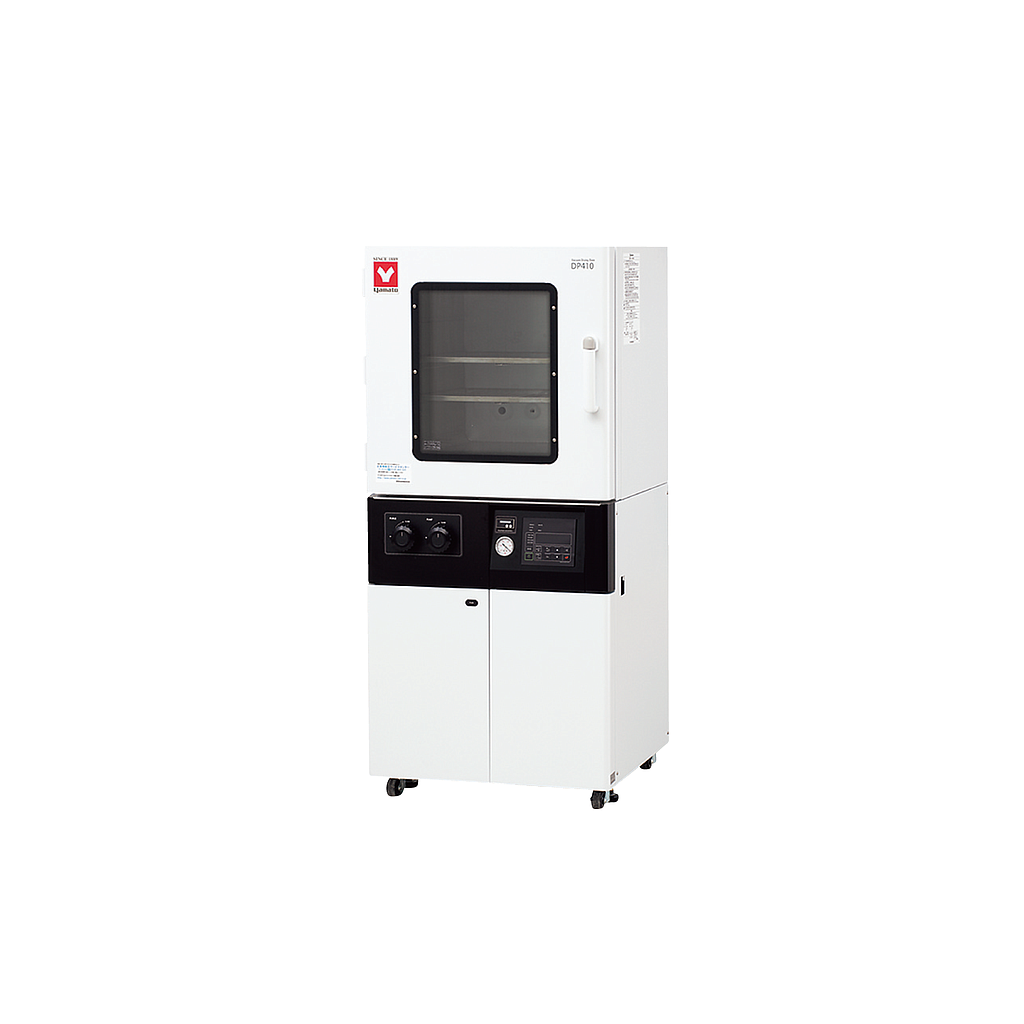

Yamato DP410 Vacuum Drying Oven (91L, 2.25 kW)

System: Vacuum drying by decompressed chamber direct heating

Operating temperature range: 40~200°C

Operating pressure range: 101~0.1kPa (760~1 Torr) at absolute pressure

Temp. control accuracy: ±1.0 °C (at 200°C) JTM K05

Max. temp. reaching time: Approx. 80min.

Interior material: Stainless steel

Exterior material: Cold rolled steel plate baking coating

Temp. control method: PlD control by microprocessor

Heater: Mica heater 2.25 kW

Heat insulating material: Rock wool

Internal dimensions (WxDxH): 450×450×450mm

External dimensions (WxDxH): 670×669×1500mm

Internal capacity: 91L

Power source: AC220V Single phase 11A

Weight: Approx. 210kg

Accessories: Shelf plate (Aluminum punting metal) 2 pcs.
