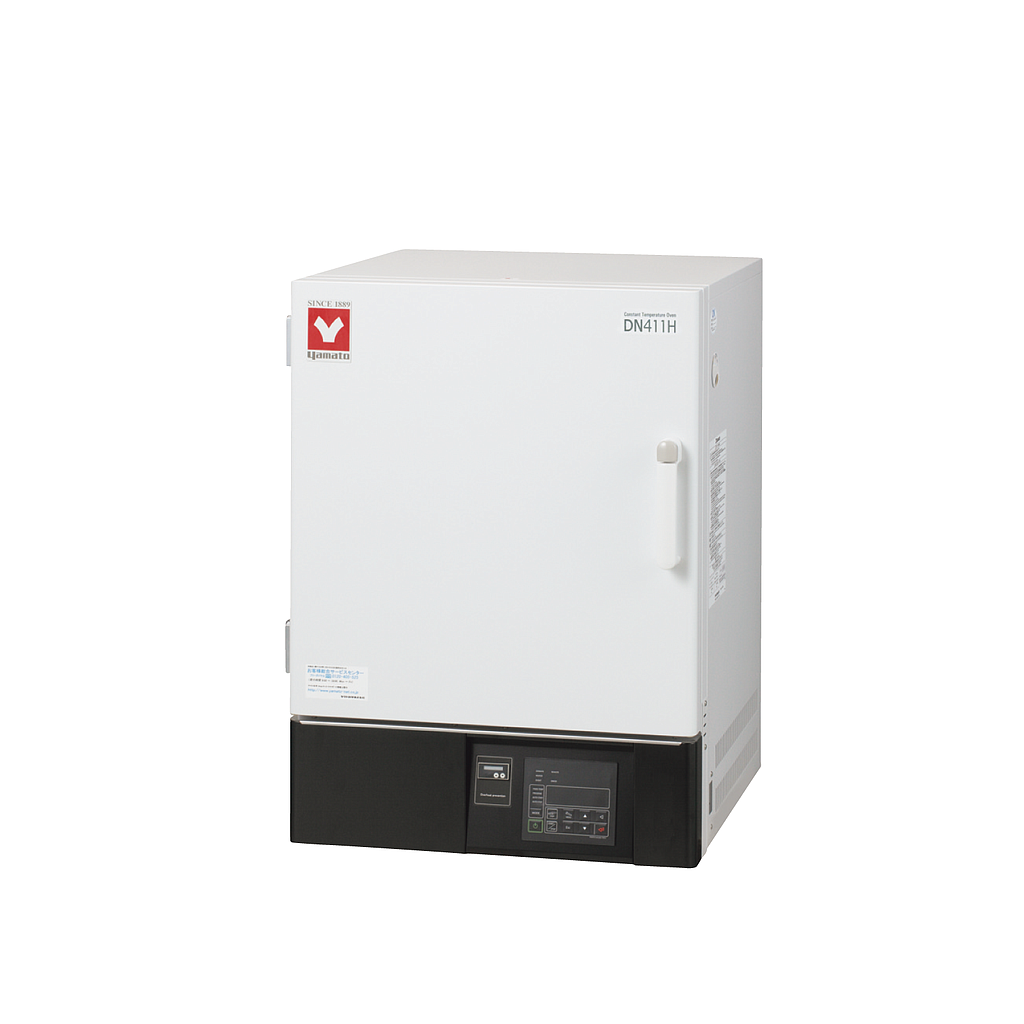

Yamato DN411H Forced Convection Oven (95L, 3.0kW)

System: Forced air circulation

Operating temperature range: RT+15 to 360°C

Temp. control accuracy: ±0.2°C (at 360°C) JTM K05

Temp. distribution accuracy: ±3°C(at 360°C) JTM K05

Max. temp. reaching time: Approx. 60 min

Interior material: Stainless steel

Insulation material: Glass wool + Ceramic fiber

Heater: Stainless pipe heater 3.0kW

Fan type / Motor: Scirocco fan / Condenser type motor 1pc.

Cable port: 30 mm l.D.×1 pc. (Right side)

Exhaust port: 30 mm l.D.×2 pcs.(Back side)

Temp. controller: PlD control by microprocessor

Internal dimensions (W×D×H): 470×450×450mm

External dimensions (W×D×H): 640×695×915mm

Internal capacity: 95L

Power supply: AC220V 15A Single-phase

Weight: 90kg
