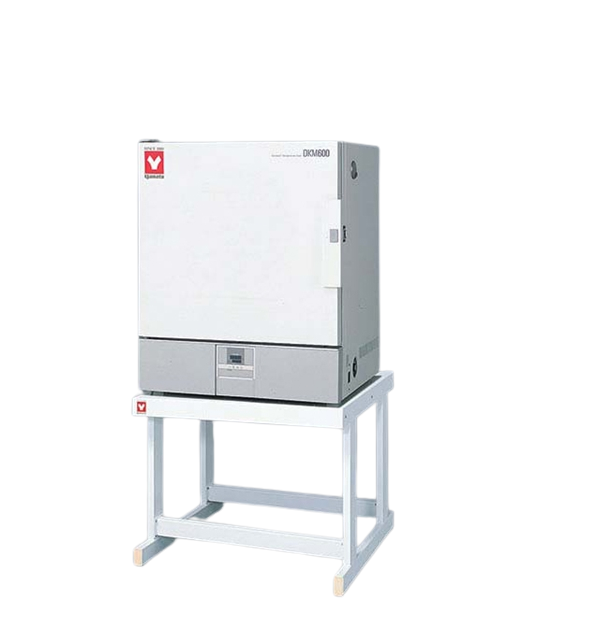

Yamato DKM600 Economical Forced Convection Oven (150L,1.34kW)

Operating temperature range: Room temp. +10~260°C

Temp. control accuracy: ±1°C (at 210°C) JTM K05

Temp. distribution accuracy: ±2.5°C (at 210°C) JTM K05

Heater: Stainless pipe heater 1.34kW

Fan type / Motor: Scirocco fan / Condenser type motor

Cable port: 30 mm l.D.×1 pc. (Right side)

Exhaust port: 30 mm l.D.×2 pcs.(The top)

Temp. controller: PlD control by microprocessor

Internal dimensions (W×D×H): 600×500×500mm

External dimensions (W×D×H): 710×651×870mm

Withstand load of shelf: 15 kg / pc.

Internal capacity: 150L

Power supply: AC220V 7A; Single phase

Weight: 65kg
