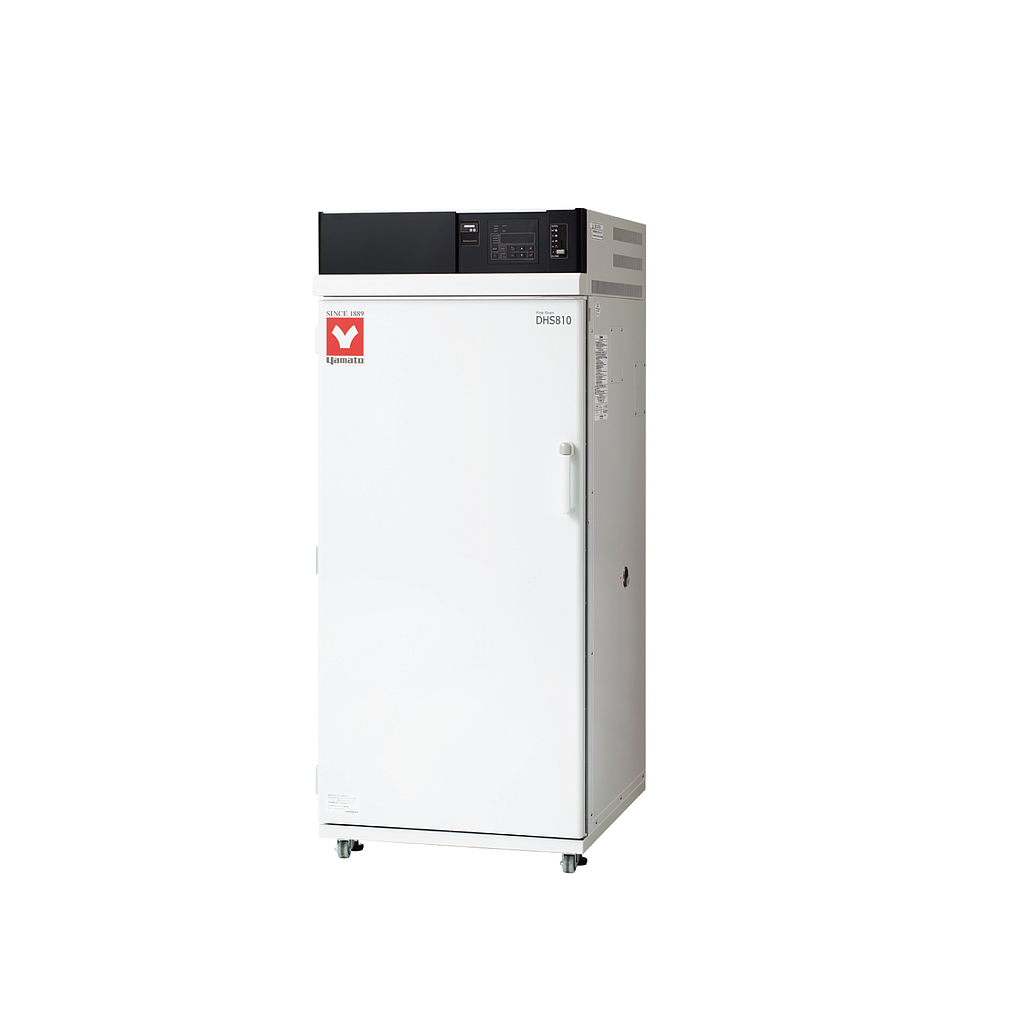

Yamato DHS810 Large Capacity Fine Oven (558L, 6.0kW)

System: Forced convection and ventilation

Operating temperature range: RT +15~360°C

Temp. control accuracy: ±0.3°C (at 260°C) JTM K05

Temp. distribution accuracy: ±3.0°C (at 260°C) JTM K05

Max. temp. reaching time: Approx. 50 min

Interior material: Stainless steel

Exterior material: Cold rolled steel plate with melamine resin baking finish

Temp. control system: PID control with a micro computer

Heater: Stainless pipe heater 6.0kW

Blower fan / Motor: Axial flow fan / Capacitor motor

Cable port: 33mm l.D. (left side):1 pc.

Heat insulating material: Glass wool

Internal dimensions (W×D×H): 620×750×1200mm

External dimensions (W×D×H): 770×965×1880 mm

Internal capacity: 558L

Power supply: AC220V / 380V Three phase

Weight: 190kg

Stainless wire shelf / bracket: 2 pcs / 4 pcs
