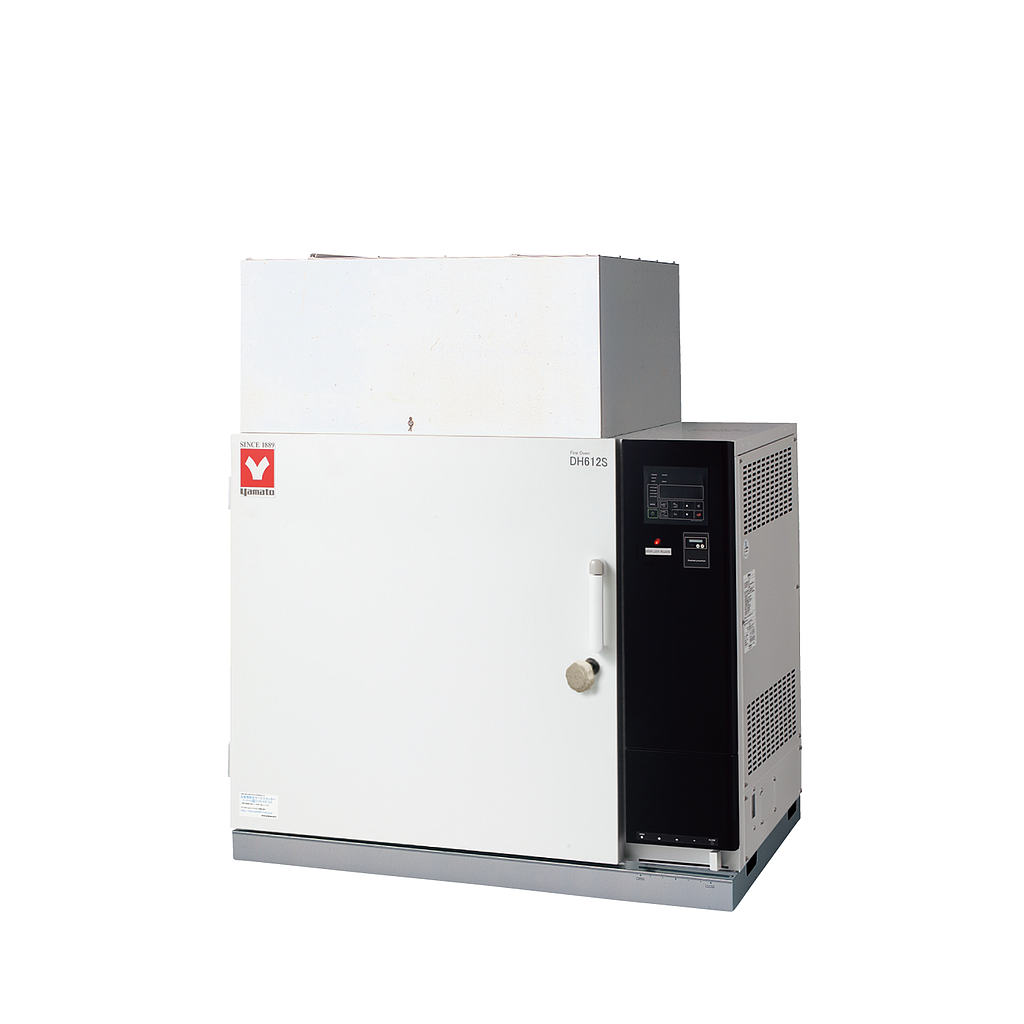

Yamato DH612S Anti-explosion Fine Oven (216L, 3.75kW)

System: Forced convection and ventilation

Operating temperature range: RT +10~360°C

Temp. control system: PID control with a micro computer

Heater: Stainless steel pipe heater with fins 3.75kW

Fan: Axial fan (Condenser motor: 20W)

Cable port: I.D. 33 mm×1 pc. (rear)

Heat insulating material: Ceramic fiber

Internal dimensions (W×D×H): 600×600×600 mm

External dimensions (W×D×H): 1200×780×1000 mm

Internal capacity: 216L

Power supply: Single phase: AC220V, 19A

Weight: 170kg

Stainless wire shelf / bracket: 3 pcs / 6 pcs
