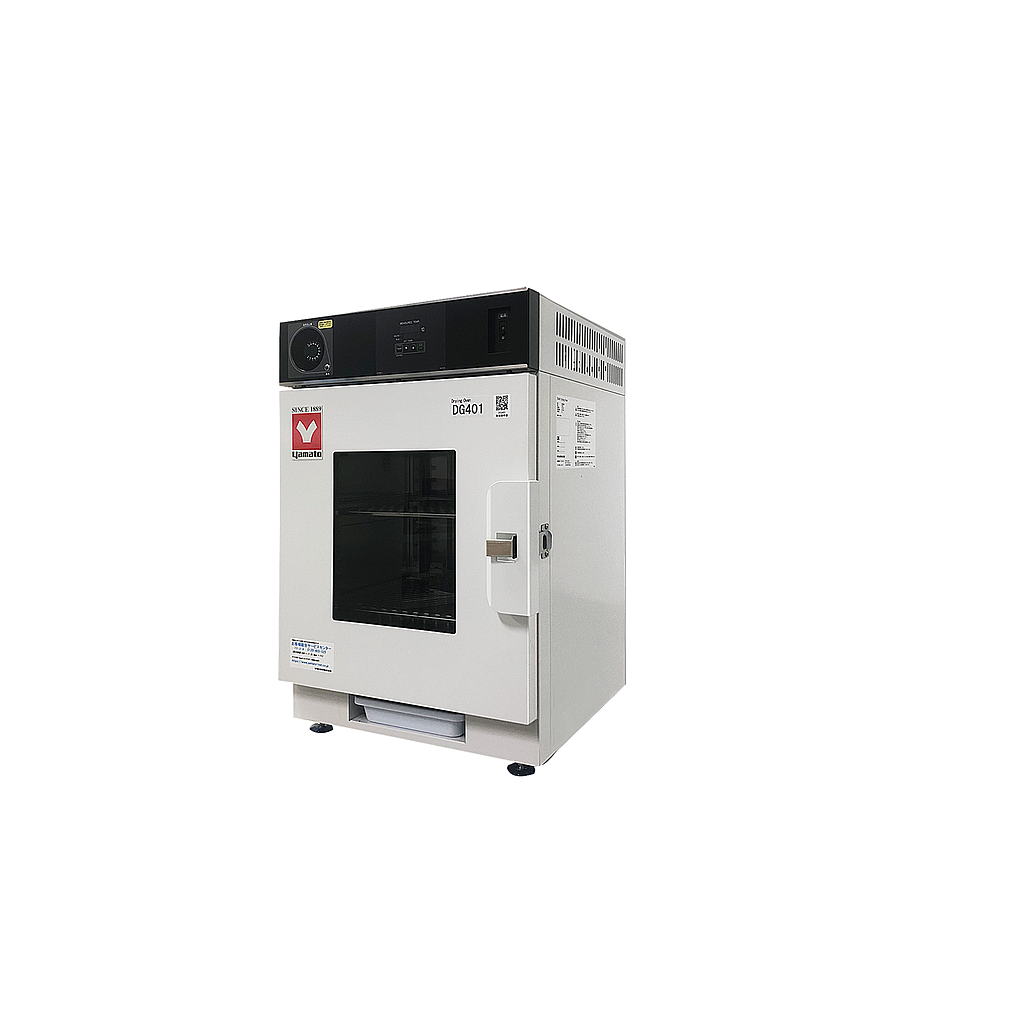

Yamato DG401 Natural Convection Ovens for Glassware Drying (95L, 600W)

Method: Natural convection

Operating temp. range: RT＋5 to 70℃

Interior material: Stainless steel

Exterior: Cold rolled steel plate with chemical proofing coating

Heater: Stainless steel pipe heater 600 W

Observation window (W×Hmm): 250×300

Exhaust port: 2 pcs

Temp. control: PID control

Sensor: K thermocouple

Shelf plate: Stainless punching metal, 2 pcs

Shelf bracket: 4 pcs

Water pan: 1 pc

Internal dimensions（W×D×H mm）: 450×470×450mm

External dimensions（W×D×H mm）: 504×562×773mm

Remarks(dimensions): 95L

Power Source: AC115V/AC220V 50/60Hz, Single phase

Weight: 43kg

Datasheet
