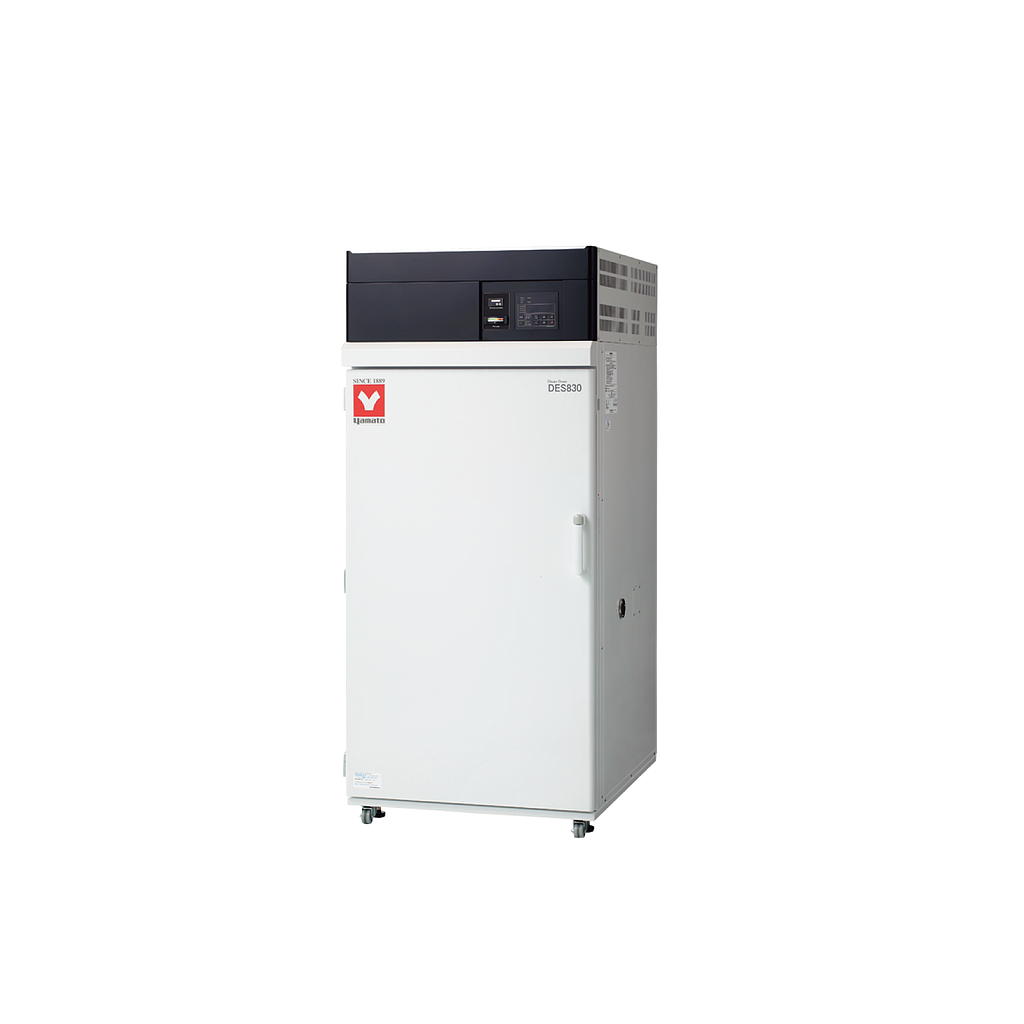

Yamato DES830 Large Capacity Clean Oven (327L)

Circulation method: Forced convection

Operating temperature range: RT +30~260°C

Temp. control accuracy: ±0.5°C (at 260°C) JTM K05

Temp. distribution accuracy: ±2.0°C (at 260°C) JTM K05

Max. temp. reaching time: Approx. 70 min

Clean level: Class 100

Interior material: Stainless steel

Exterior material: Cold rolled steel plate with melamine resin baking finish

Temp. control system: PID control with a micro processor

Heater: Stainless pipe heater

Heat insulating material: Glass wool

Internal dimensions (W×D×H): 620×480×1100mm

External dimensions (W×D×H): 850×1080×1955mm

Internal capacity: 327L

Power supply: AC220V / 380V Three phase

Weight: 335kg

Stainless wire shelf / bracket: 3 pcs / 6 pcs

Datasheet
