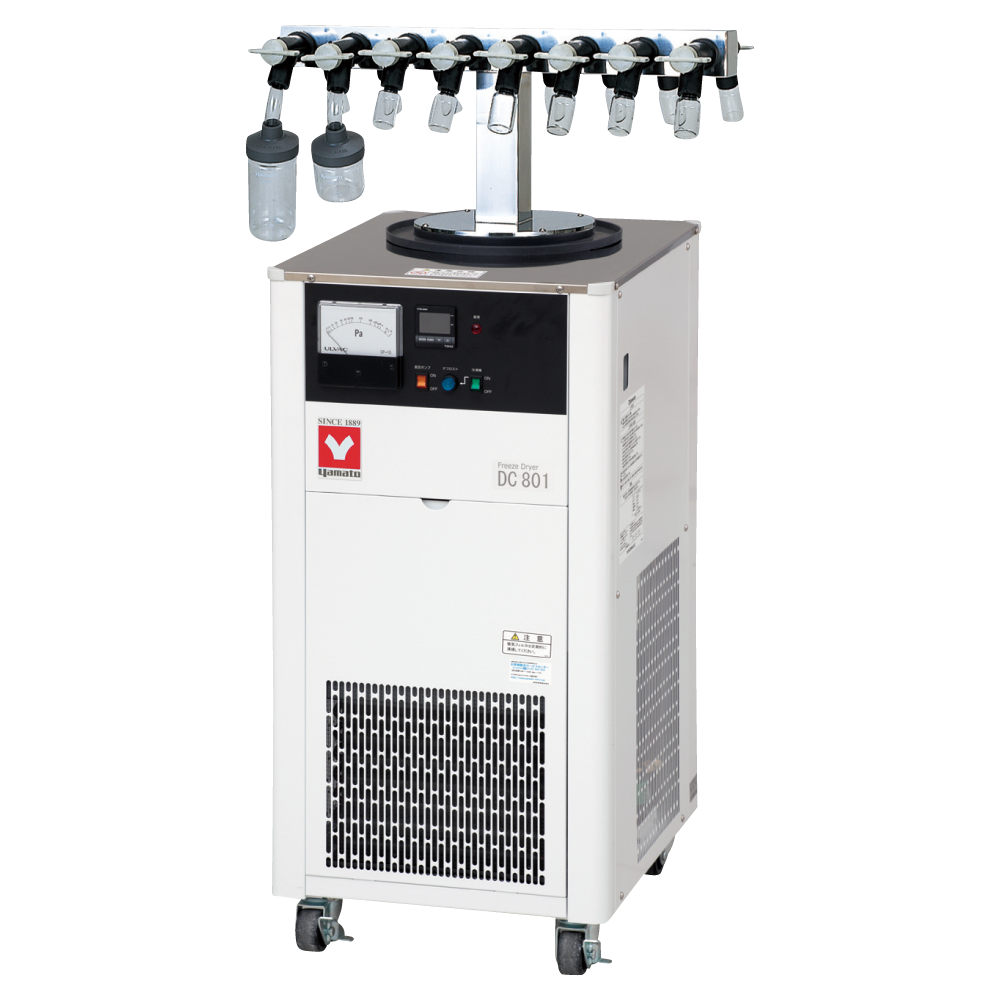

Yamato DC801 Freeze Dryer (-85°C, 4L)

Trap cooling temperature: -85°C

Dehumidify amount: 1.0L

Temperature sensor: Platinum resistance temperature detector Pt100Ω

Temperature display: 7 segment LCD

Refrigerator: Air Cooling Type, 350W

Refrigerator, coolant: R600a and others, mixed coolant

Compound gauge: High pressure/Low pressure monitor

Bath Shape, material: Cylinder, Stainless steel

Drain: Vacuum Hose with Stopper

Vacuum gauge: Pirani vacuum measure

Trap defrost: Defrosted by Hot Gas

Exhaust port (vacuum pump connection: Dia.17mm

Ambient temperature range: 5~30°C

Safety device: Electric leakage breaker with over current protection,refrigerator overload relay, valve for back flow prevention

Trap dimensions: Dia.153 x H235mm

Accessories: Vacuum silicone grease, Vacuum hose, 10A fuse, 4 Caster stop holders

External dimensions（W×D×H mm）: W405×D500×H846mm

Remarks(dimensions): Internal capacity approx. 4L

Power Source: AC115V/AC220V Single phase with step-down transformer

Weight: 65kg
