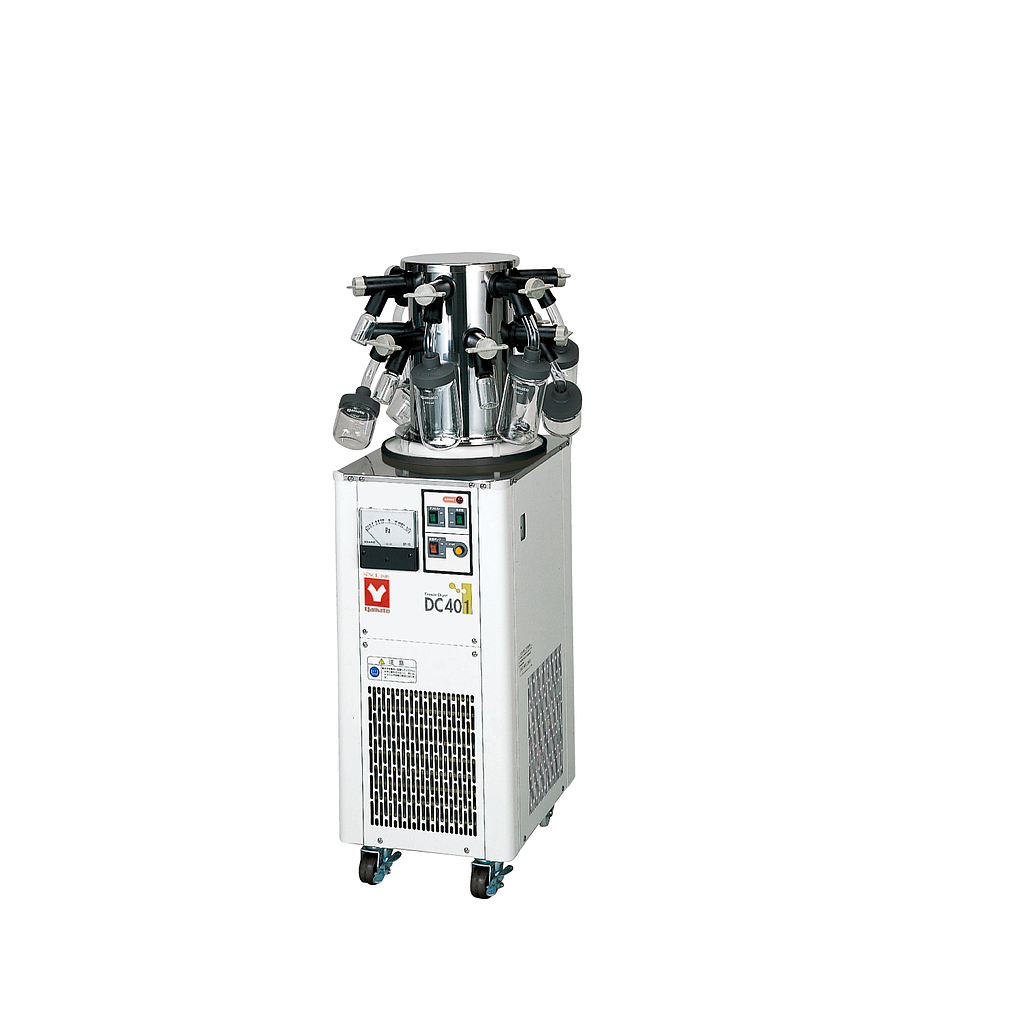

Yamato DC401 Freeze Dryer (-45°C, 4L)

Trap cooling temperature: -45℃

Dehumidify amount: 0.6L

Temperature sensor: N/A

Temperature display: N/A

Refrigerator: Air Cooling Type, 400W

Refrigerator, coolant: R404A, Coolant amount: 225g

Compound gauge: N/A

Bath Shape, material: Cylinder, Stainless steel

Drain: Vacuum Hose with Stopper

Vacuum gauge: Pirani vacuum measure

Trap defrost: Defrosted by Hot Gas

Exhaust port (vacuum pump connection: Dia.17mm

Ambient temperature range: 5~30°C

Safety device: Electric leakage breaker with over current protection,refrigerator overload relay, valve for back flow prevention

Trap dimensions: Dia.153 x H235mm

Accessories: Vacuum silicone grease, Vacuum hose, 10A fuse

External dimensions（W×D×H mm）: 300×450×720mm

Remarks(dimensions): Internal capacity approx. 4L

Power Source: AC115V/AC220V Single phase with step-down transformer

Weight: 43kg
