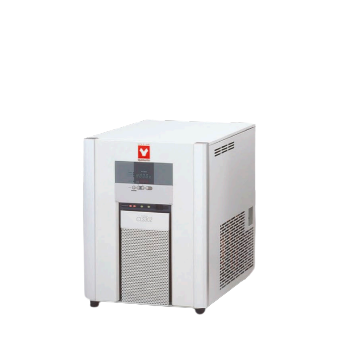

Yamato CLS302 Cooling Water Circulator (1.5L)

Method: External opened circulation

Operating temperature range: -10°C to RT

Temperature control accuracy: ±1.5 to ±2°C

Cooling capacity: Approx. 450W(387Kcal/h), at fluid temp. 15°C

Temperature control: Refrigerator ON-OFF control

Temperature sensor: T thermocouple

Temperature setting, display: Digital setting and display

Refrigerator, refrigerant: Air cooling, 250W, R404A

Circulating pump: Magnetic drive pump

Unit circulation ability (50/60Hz), Max. flow, Pump capacity: 5.4/6.2L/min, (10.0/11.0L/min)

Unit circulation ability (50/60Hz), Max. lift, Pump capacity: 3.5/5.0m, (4.9/6.9m)

External circulation nozzle: O.D.13mm of water outlet and return port

Operating environmental temp. range: 5 to 30°C

Accessories: Circulating heat preservation pipe-1, Pump circulating tube-1, Hoop-4, Drain pipe-1

External dimensions（W×D×H mm）: 410×460×550mm

Remarks(dimensions): Bath capacity 1.5L, Bath dimension I.D.120×D200mm

Power Source: AC115V/AC220V Single-phase with step down transformer

Weight: 40kg
