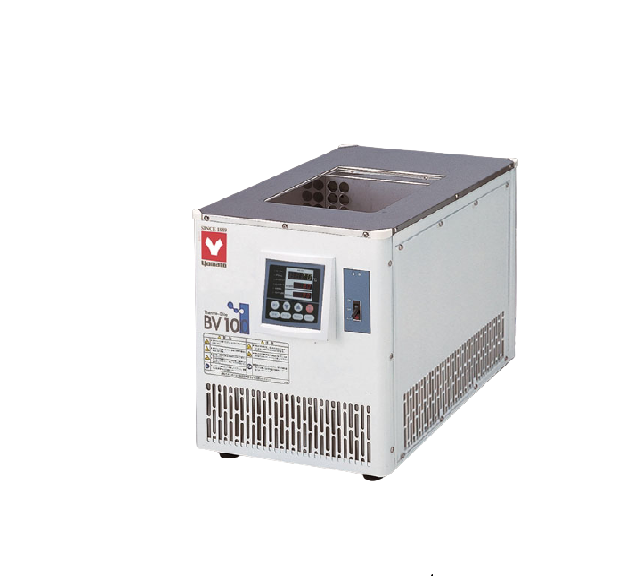

Yamato BV100 Water Bath (6L)

Stirring system: Peltiert device with heater, Stirring by pump

Operating temp. Range: 0 to 80°C (periphery temperature 20°C)

Temp. adjustment accuracy: ±0.1°C (Water temp. 20°C, Room temp. 20°C)

Temp. distribution accuracy: ±0.1°C (Water temp. 20°C, Room temp. 20°C)

Time to reach to max. temp.: Approx. 90min.

Time to reach to min. temp.: Approx. 180min.

Internal bath: Stainless steel

Temp. Adjuster: PID control by microcomputer

Program function: 8 steps×2 patterns, or 16 steps×1 pattern

Sensor: Pt sensor, Pt100Ω (Temp. controller),K-thermocouple (for overheat preventor) (Double sensor)

Temp. setting system: Digital

Temp. display system: Digital

Overheat preventor: On/Off control by microcomputer

Overheat preventor setting: Digital

Heater: Copper pipe heater (Nickel plated)　0.5kW

Cooler: Peltiert device

Cooling fan: Direct flow fan

Stirrer: Magnet pump 3W

Timer: 1min. to 99hrs.59min. to 999hrs.50min. Digital display, Automatic stop, Automatic start

Safety countermeasure: Self diagnosis Function (Heater wire broken, SSR short circuit, Automatic overheat prevent function), Empty boiling prevent system, Overheat preventor,Over-current / Electric leakage breaker

Drain hose dimensions: φ15×φ20

Accessories: Drain pump, Water bath lid

Internal dimensions（W×D×H mm）: 188×220×180mm

External dimensions（W×D×H mm）: 340×538×415mm

Remarks(dimensions): Internal capacity Approx. 6L

Power Source: AC220V 5A

Single phase

Weight: 35kg
