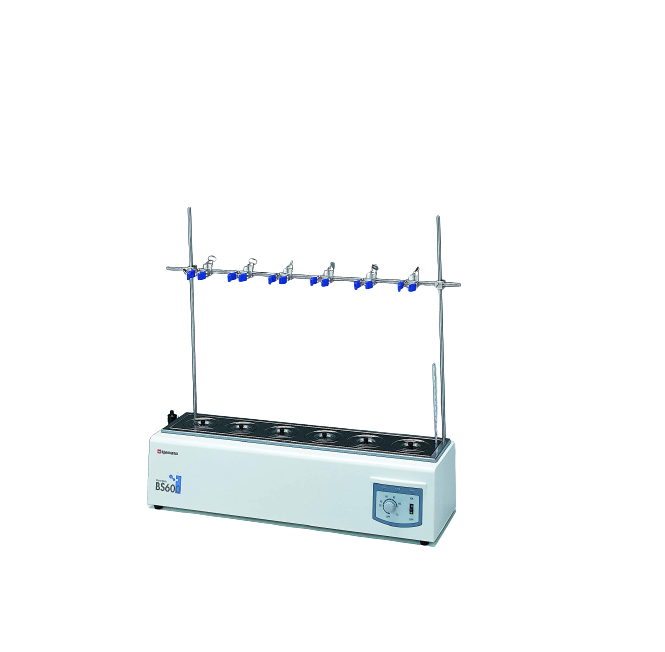

Yamato BS601 Constant Temperature Water Bath (12L, 1.3kW)

Operating Temp. Range: Room Temp. +5°C to Boiling Temp. (Water)

Temp. Adjustment Accuracy: ±3°C (at 70°C )

Temp. Distribution Accuracy: ±5°C (at 70°C )

Time to Reach to Constant Max. Temp: Approx. 55 min

Inner Bath: Stainless Steel

Heater: Copper Pipe Heater (Nickel Plated) 1.3kW

Safety Countermeasure: Overheat Prevention System (Liquid Expansion Type, Self SustainingRelay, Alarm Lamp On) Electric Leakage Breaker with Over CurrentProtection (Power Lamp On at the time System On)

Opening Size, Q’ty: ø115mm, 6pcs.

Accessory: Ring, Lid, Container Fixing Clamp, Stand, Bar for Clamp Fixing (Not including BS200), Connector for Stand, Thermometer (-10°C to +110°C Alcohol Type), Bottom Plate

Internal dimensions（φ×H mm）: L790×W150 x D102mm

External dimensions（W×D×H mm）: L864×W288 x H215mm

Remarks(dimensions): Effective Inner Dimension L776×W140 x D73mm Internal capacity 12L

Power Source: AC220V, 6.5A Single phase

Weight: 16kg
