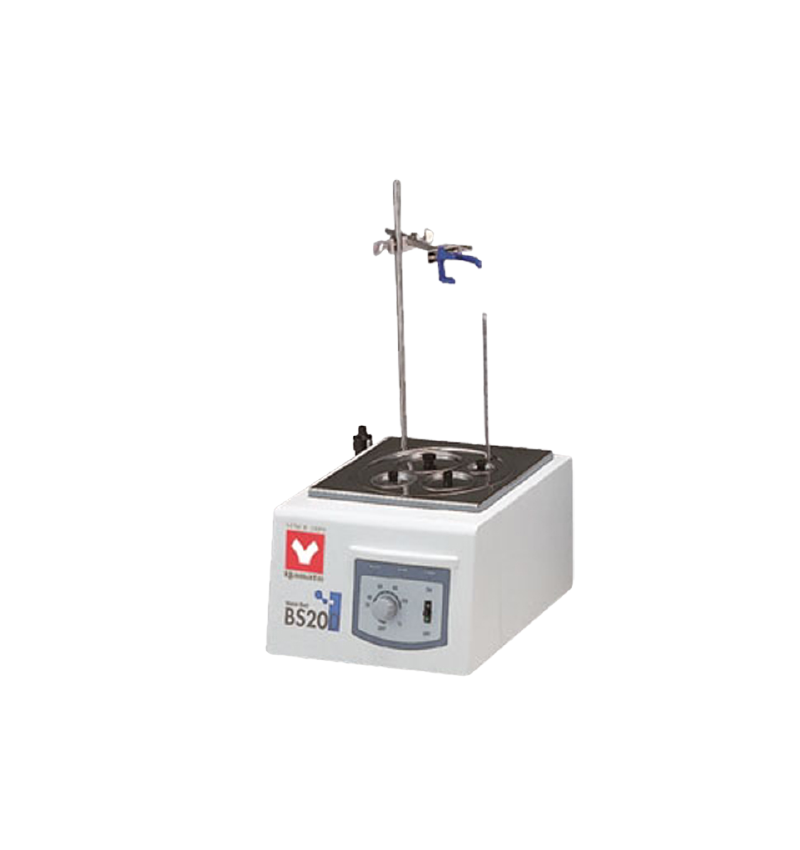

Yamato BS200 Constant Temperature Water Bath (4.7L, 0.9kW)

Operating Temp. Range: Room Temp. +5°C to Boiling Temp. (Water)

Temp. Adjustment Accuracy: ±3°C (at 70°C )

Temp. Distribution Accuracy: ±5°C (at 70°C )

Time to Reach to Constant Max. Temp: Approx. 30min

Inner Bath: Stainless Steel

Heater: Copper Pipe Heater (Nickel Plated) 900W

Safety Countermeasure: Overheat Prevention System (Liquid Expansion Type, Self SustainingRelay, Alarm Lamp On) Electric Leakage Breaker with Over CurrentProtection (Power Lamp On at the time System On)

Opening Size, Q’ty: ―

Accessory: Ring (Not including BS200), Lid, Container Fixing Clamp, Stand, Bar for Clamp Fixing (Not including BS200), Connector for Stand, Thermometer (-10°C to +110°C Alcohol Type), Bottom Plate, Basket (Only for BS200)

Internal dimensions（φ×H mm）: φ200×149mm

External dimensions（W×D×H mm）: 300×364×216mm

Remarks(dimensions): Effective Inner Dimension φ186× Depth 115mm　・Internal capacity 4.7L

Power Source: AC115/220V Single phase

Weight: 5kg
