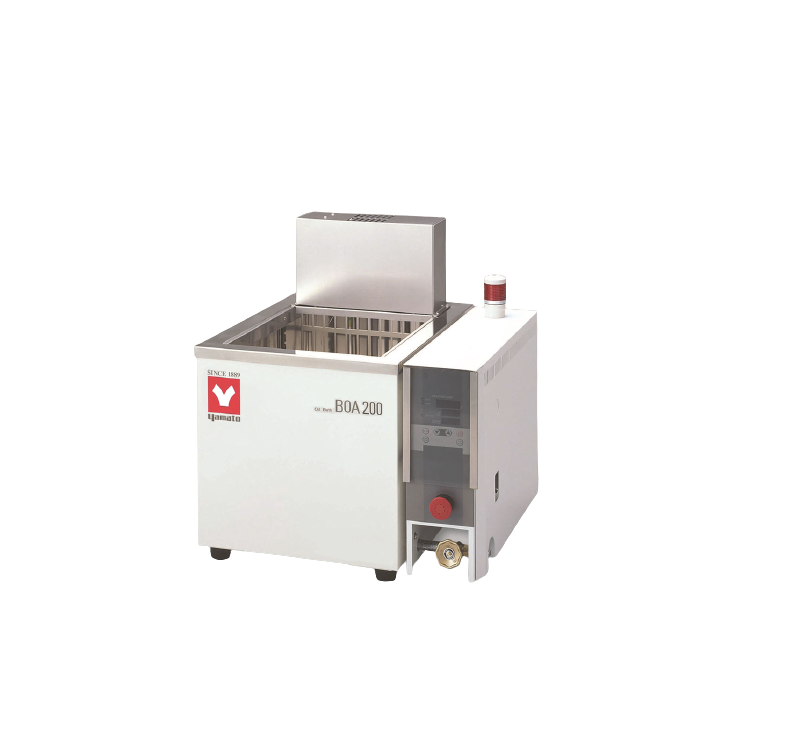

Yamato BOA200 Large Capacity Oil Bath (37L, 2kW)

Temp. control range: RT+10~200°C

Temp. adjustment accuracy: ±0.1°C

Temp. distribution accuracy: ±0.2°C

Max. temp. reaching time: 120 min

Temp. control: PID control

Sensor: W sensor: Pt100Ω(Temp. adjuster) + K Thermocouple (Overheat prevention function)

Operation function: Fixed Operation

Stirring method: Water Jet Stirring

Heater: SUS316 Pipe Heater 2kW

Safety device: Electric leakage breaker for over current protection, self diagnostic function,temp. sensor error, heater error, automatic overheat prevention function,

Safety device: overheat preventor, independent overheat preventor (fixed 230°C for BOA200, fixed 300°C for BOA310), float switch detector for overflow oil, float switch detector, emergency stop switch

Other functions: Drain valve, large operation lamp, external alarm output terminal, temp. output terminal (1~5v, 4~20ma adjustable),

Other functions: rs485 communication function, key lock function, power failure protection function, calibration offset function, external communication adapter (optional)

Accessories: Shelf 1pc., lid 1pc

Internal dimensions（W×D×H mm）: 296×340×270mm

External dimensions（W×D×H mm）: 531×520×578mm

Remarks(dimensions): External size oil tank height 397mm　・　Capacity　37L

Power Source: AC220V 10A Single phase with step-down transformer

Weight: 37kg
