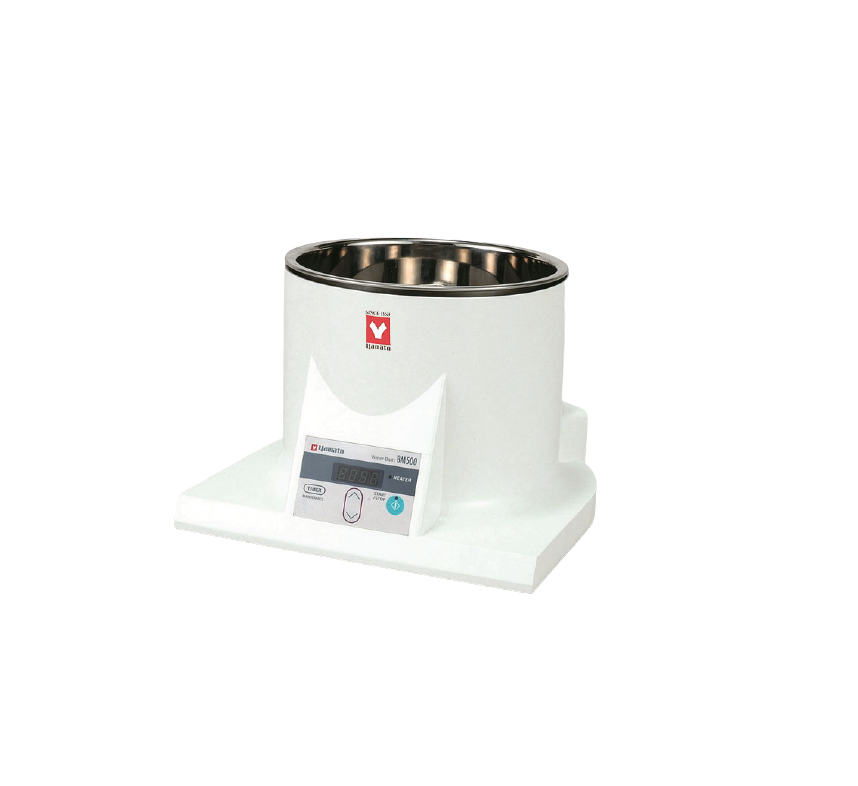

Yamato BO410 Economical Oil Bath (4L, 1kW/1.44kW)

Operating temp. range: Room temp. +10 to 180°C

Temp. control accuracy: ±2°C (at agitation)

Temp. control system: PlD control by microprocessor

Temp. setting/display method: Digital setting by ▲/▼ keys

Operation function: Keypad lock, RE signal transmission and reception, Power failure recovery, Calibration off-set

Heater: 1kW（200V）　1.44kW (240V)

Sensor: K thermocouple

Safety device: Bath protection cover (ABS heat-resistant resin)

Safety device: Self-diagnostic function (Automatic overheat prevention, Temperature sensor error, Triac short circuit, Heater disconnection, Main relay failure), Circuit protector, Thermal fuse, Micro switch to detect heating without oil

Interlocking control function: RE601/801 signal transmission and reception (Constant operation, Heat retention operation, Stop), Error report to RE601/801

Internal dimensions（φ×H mm）: φ240×122mm

External dimensions（W×D×H mm）: 340×349×231mm

Remarks(dimensions): Tank maximum inner diameter 240× bottom diameter φ165×D122mm　approx.4L

Power Source: AC200 to 240V 5.5 to 6.5A Single phase

Weight: 5.5kg
