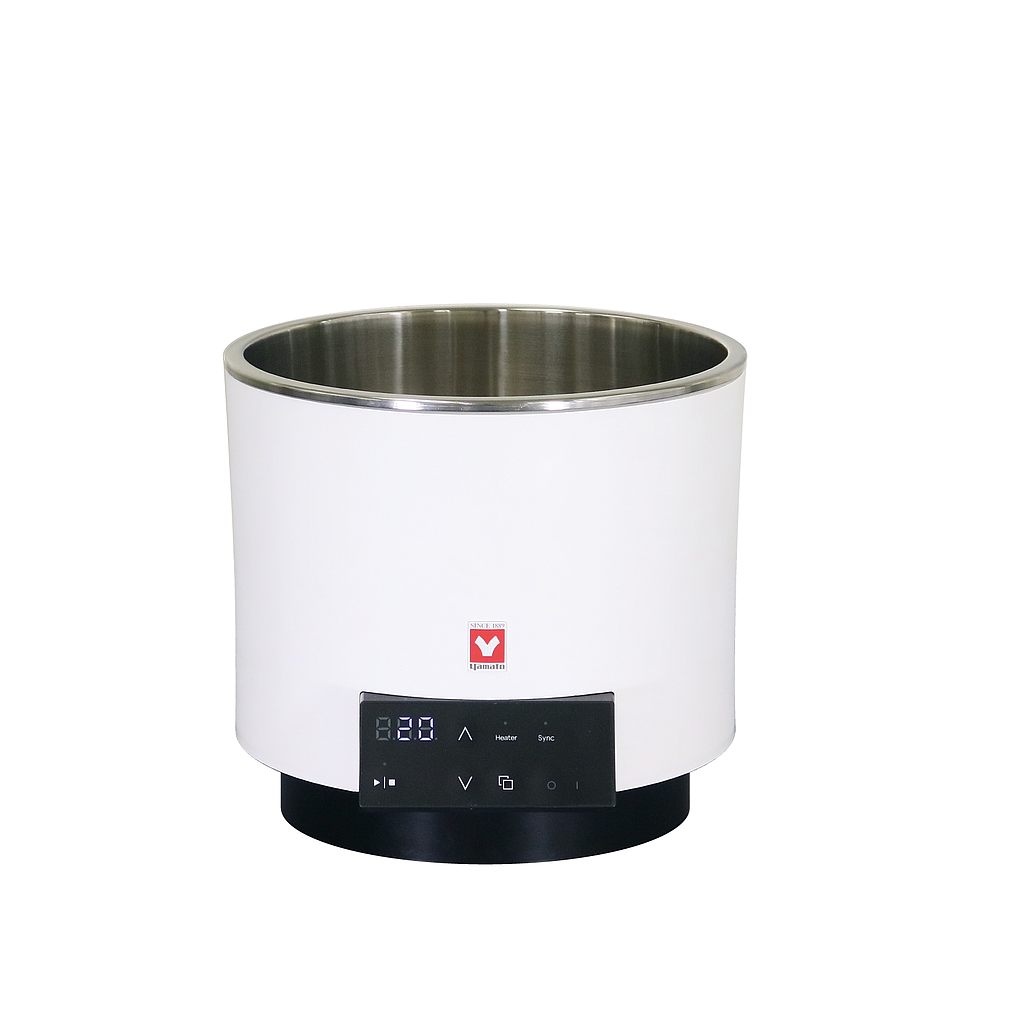

Yamato BO312-D Oil Bath (5L)

Operating temp. range: Room temp. +10 to 180°C

Temp. control accuracy: ±2°C

Temp. control system: PlD control

Temp. setting/display method: White LED digital display, key entry, minimum digit of 1°C

Heater: 1kW

Sensor: Pt 100 ohm

Safety device: Automatic overheat prevention, Independent overheat prevention (fixed temp.)

Additional function: Overshoot alert, Auto resume (selectable), Calibration off-set

External dimensions（φ×H mm）: φ262×240mm

Remarks(dimensions): Bath internal capacity : Approx.5L

Power Source: AC200 to 230V 5 to 6A

(50/60Hz) Service outlet for RE212 : None

Weight: 4.5kg

Datasheet
