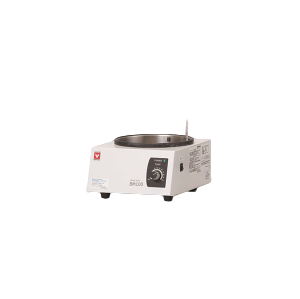

Yamato BM100 Constant Temperature Economical Water Bath (4L, 500W)

Operating temp. range: Room temp. +5~95°C

Temp. adjustment accuracy: ±2°C (at 60°C)

Temp. control system: ON/OFF control

Temp. setting/display method: Analog setting (Glass thermometer indication)

Additional function: ―

Heater: SUS316 pipe heater 500W

Sensor: Liquid expansion type

Safety device: Bath protection cover, Overcurrent protection (fuse: 7A), thermal fuse

Interlock control function: ―

Accessories: Bar thermometer (10~110°C) with immersion line

Internal dimensions（φ×H mm）: φ200×120mm

External dimensions（W×D×H mm）: 240×300×150mm

Remarks(dimensions): Water bath Approx. 4L

Power Source: AC115V/220V Paddle switch

Weight: 3.5kg
