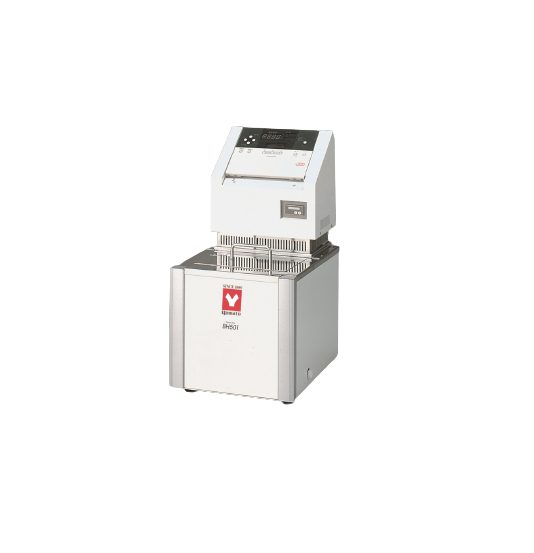

Yamato BH501 Water Bath (1.2kW, 13L)

Circulation system: Water jet pump circulation/External closed circulation

Operating temperature range: RT+15~200°C

Temperature adjustment accuracy: ±0.01°C (water: RT+15°C~80°C)

Temperature indication unit: 0.1℃

Circulation Pump: Water jet pump circulation

Pump max. flow (50/60Hz): 14/15L/min. (Circulation pressure loss when below 10kPa)

Pump max. lift (50/60Hz): 2.8/3.4m (water flow about 0.5L/min)

Heater: 1.2kW

Ambient temperature range: 5~30°C

Temperature control/system: PID control by microprocessor

Sensor: W sensor: Pt 100Ω A-class (for temperature control)+ K-thermocouple (for overheat prevention) double sensor

Accessories: Hose nipple (1/2×ø14mm) 2pcs.

Internal dimensions（W×D×H mm）: 239×299×200mm

External dimensions（W×D×H mm）: 310×396×607mm

Remarks(dimensions): Effective tank dimensions W227×D150×H200mm（Frontage corner R34）　Tank height 307㎜（rubber height included）Internal capacity13L（Liquid volume approx.10L）

Power Source: AC220V 6A Single-phase with step down transformer

Weight: 20kg
